M-Bus using NB-IoT - MQTT

This is a documentation for devices ACR-CV-101N-M-D and ACR-CV-101N-M-EAC using MQTT to publish the readouts.

interesting

MQTT requires firmware for ACR-CV-101N-M-D and ACR-CV-101N-M-EAC using version 2.15.0 and newer.

Application is using MQTT 3.1 .

List of Items​

The following is covered in the article:

  1. Requirements
  2. Base Principles
  3. Installation
  4. Initial Meter Scan
  5. MQTT Protocol
  6. Script Parameters
  7. Remote Configuration and Actions

Requirements​

For the use of this solution, following is required:

MQTT M-Bus Lua script
ver="1.0"
----- CONFIGURATION -----
-------- NB-IoT ---------
APN="auto"                                    -- APN for the SIM card ("auto"=autodetection)
PLMNID=0                                      -- PLMNID for the SIM card (0=autodetection) Vodafone CZ=23003
reinitOnWakeGather=0                          -- 1 for reinitialization of the NB Iot module before gathering (prevent strugling)
--------- MQTT ---------
mqtt_server= "test.mosquitto.org"             -- broker address IP or domain name
mqtt_port=1883                                -- port
mqtt_mode="TCP"                               -- "TCP" or "SSL" or autodetection based on port (8883 for SSL, else TCP)
mqtt_user_base="acrcv-"                       -- client name template
mqtt_client_name=nil                          -- client name - set to some value, otherwise will be mqtt_user_base .. imsi
mqtt_topic_base="acrios/"                     -- topic template, will add IMSI/ .. topic name
mqtt_user= ""                                 -- user name (for login)
mqtt_password= ""                             -- password (for login)
mqtt_timeout=25000                            -- timeout used for connecting and waiting for subscription
reportScheduled=true                          -- true for reporting settings to the MQTT. List of days on which gathering occurs
atDebug=false                                 -- true for debugging AT commands
memDebug=false
------- Start-up --------
nextWR=0                                      -- 1 for starting with gathering, 0 for starting with beacon
sendErrorLog=1                                -- send error log to broker after restart device

-------  Gathering timming  -------

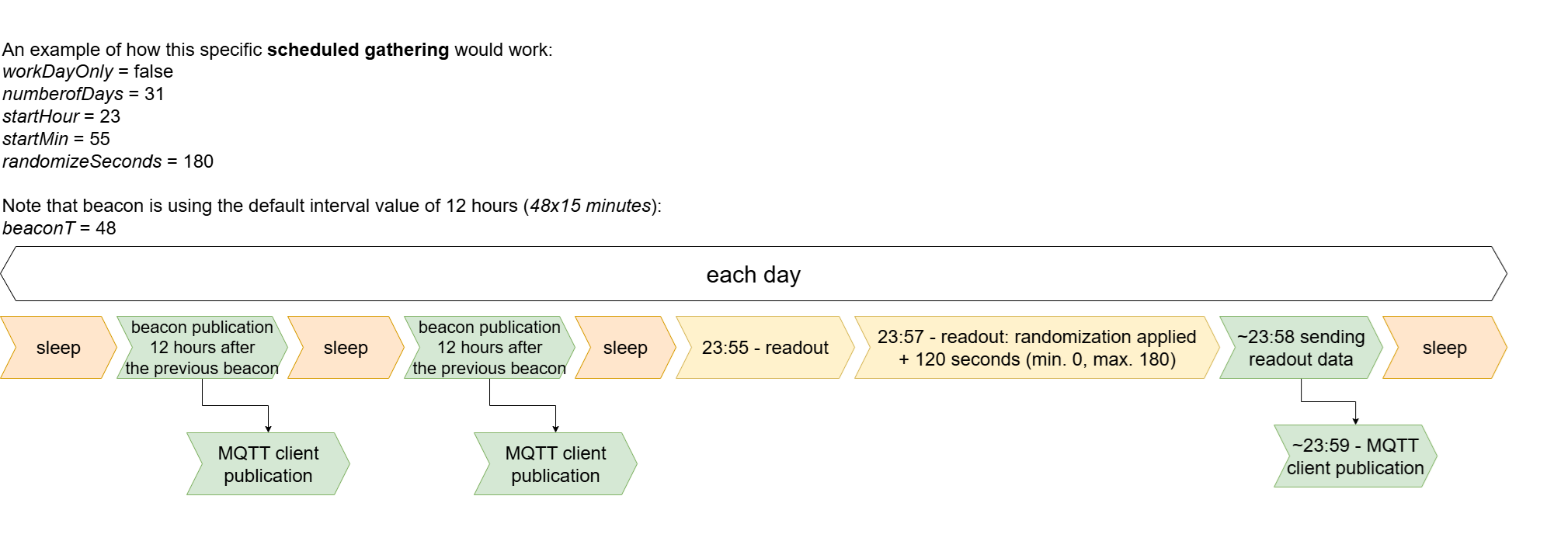

-- scheduled --

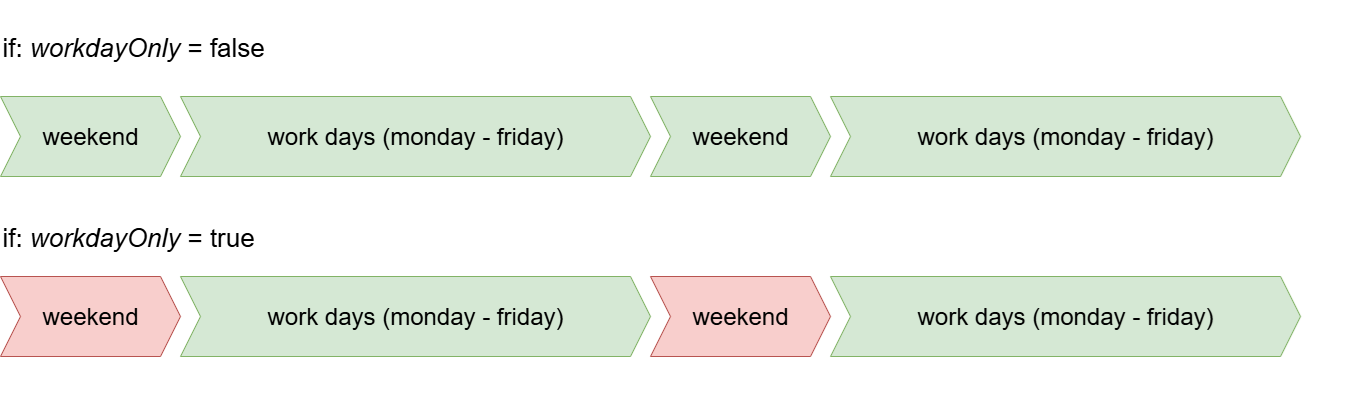

workdayOnly=false                             -- true for workdays only, false for all days

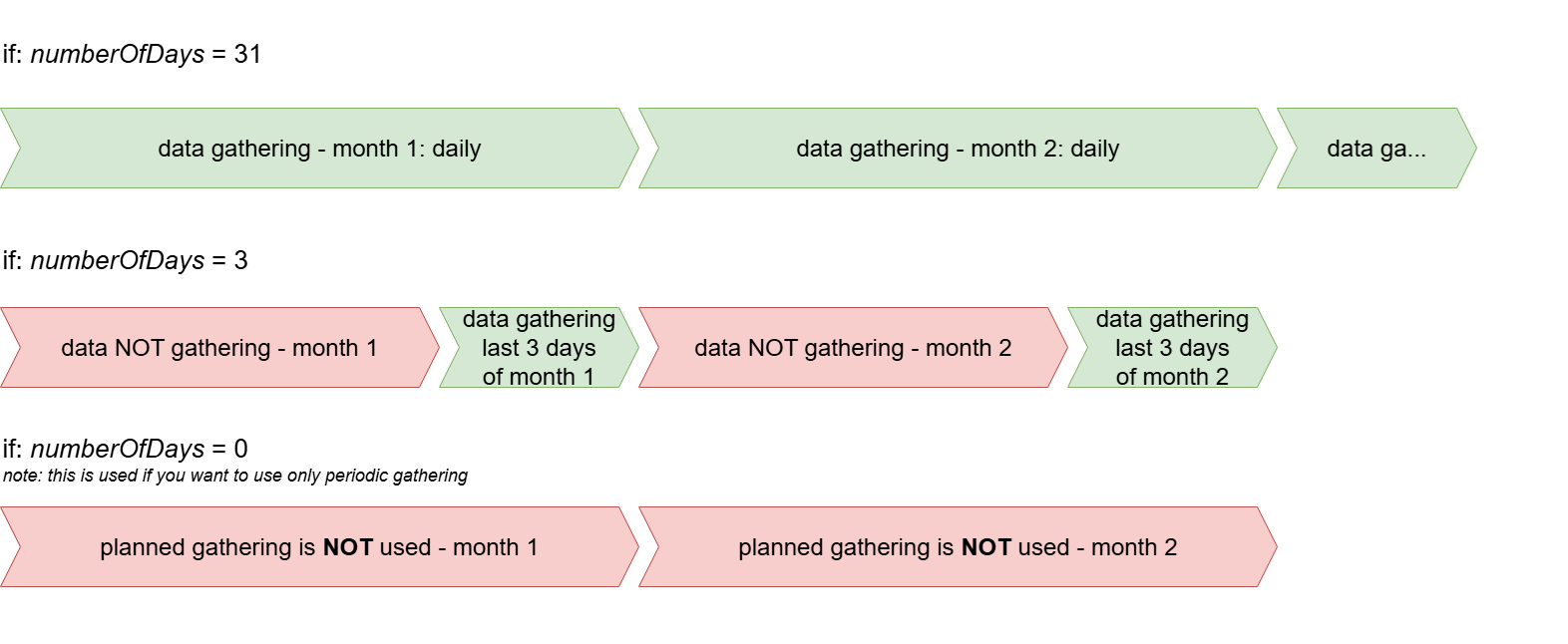

numberOfDays=31                               -- number of days/workdays since end of month, 0 for OFF , 31 all days

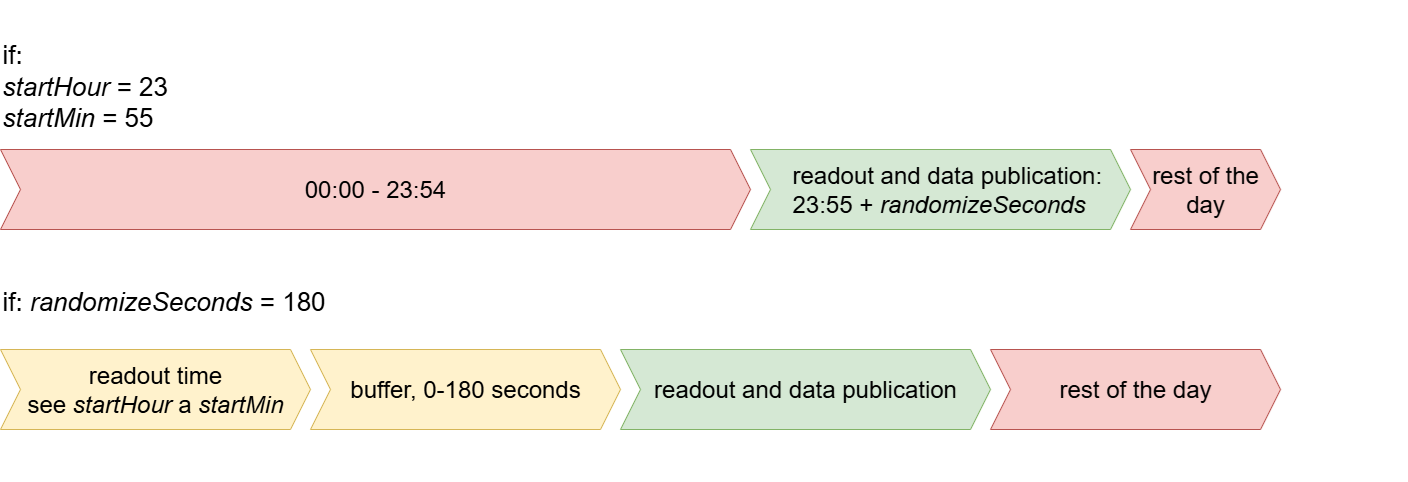

startHour=10                                  -- hour of start of the readout
startMin=0                                    -- min of start of the readout
randomizeSeconds=3*60                         -- up to 7200s~2hrs of delayed start since startHour

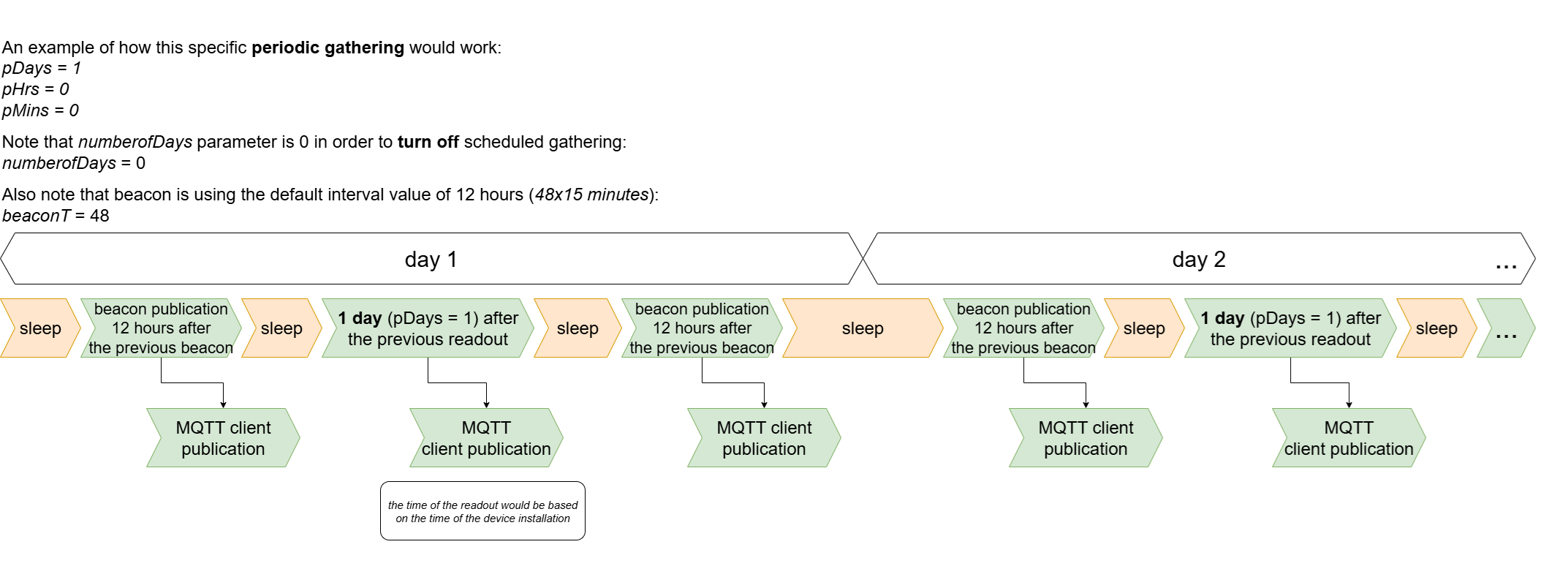

-- periodic -- (not used)
pDays=0 -- period of days for gathering data, 7 days
pHrs=0 -- period of hours for gathering data
pMins=0 -- period of minutes for gathering data

------- Timeouts --------
beaconT=48                                   -- sending beacon (48*15min=12h) interval (n*15 minutes multiple, if zero, then ~1 minute)

--------- Other ---------
noComWdg=20*24*3600*1000                     -- no communication watchdog - resets the device if no communication is received in the specified time (20 days in milliseconds)
SCmV=3100	                                 -- minimum mV on SC before sending/publishing the message
--- CONFIGURATION END ---
lGTs=0
lBTs=0
startTs=0
tauTs=0
schDays=""
daysList={}
daysListMonth=-1
pow_source="battery"
-- M-Bus specific configuration
mbus_addresses={"0"}                          -- Default, will be overwritten by JSON config {"mbus_addresses": ["0", "8", "3"]}
common_filters={}                             -- List of common VIF/DIF filters, e.g., {"0102AABB", ...} https://wiki.acrios.com/tools/M-Bus%20Filter/
mbus_primary=""
mbus_secondary=""
mbus_default_preheat=6500                     -- Default preheat time
mbus_baud_rate=2400
-- M-Bus constants
SSCAN=0
SUNICAST=1
insIDdataT=-1	-- Helper Table counter
mbC=16		-- Max count of M-Bus devices (HW specific)
-- Shorts
p=print
sv=api.setVar
g=api.getVar
mSt=api.mbusState
mVDF=api.mbusVifDifFilter
dms=api.delayms
led=api.ledControl
pp=pack.pack
pu=pack.unpack
sb=string.byte
sf=string.format
ss=string.sub
sr=string.reverse
tb=api.table
ex=api.exec
bb=bit.band
tn=""

-- Table Helper Functions


function get_mem()
    if memDebug then
        p("freemem: ", ex("_free_mem"))
    end
end
function createDataTable() -- Create Data Tables
    get_mem()
	tb("set-max-id",3)
	lowMemory=ex("_free_mem") < 80000
	if lowMemory then
		p("Low memory: creating smaller tables")
		mbC=5
		tb("new", 2, "U32", mbC) -- ID
		tb("new", 1, "STR", mbC) -- payload
	else
		p("High memory: creating bigger tables")
		mbC=16

		tb("new", 2, "U32", mbC) -- ID
		tb("new", 1, "STR", mbC) -- payload
	end
    get_mem()
	insIDdataT=0
end
function clearDataTable(save)
    if save then
        for idx=1, insIDdataT do
            local id=tb("get-index", 2, idx)
            addToMbusAddresses(tostring(id))
        end
    end
	p("Clearing Data Tables")
	tb("clear", 1)
	tb("clear", 2)
	insIDdataT=0
    get_mem()
end
function addToTable(id,payload)
	p("Adding to Data Tables",id,payload)
	tb("insert", 2, id)
	tb("insert", 1, payload)
	insIDdataT=insIDdataT + 1
    get_mem()
end

function prepareDataTable(tn,save) -- Prepare JSON data for Publishing (topic)
	for idx=1, insIDdataT do
		local payload=tb("get-index", 1, idx)
		local id=tb("get-index", 2, idx)
		local utime=ex("_get_unix_time")
		json("ID", id, 1)
		json("send-time",utime)
		json("raw-data", payload)
		MQTT_publishJson(tn .. id .. "/raw")
	end
	clearDataTable(save)
end

-- M-Bus Helper Functions
function binToHex(str)
    local ret=api.dumpArray(str, "return")
    return ret==nil and "" or ret
end
function hexToBin(h)
	local r=""
	for i=1, #h, 2 do
		r=r .. string.char(tonumber(h:sub(i, i+1), 16))
	end
	return r
end
-- LED Signaling Helper
function ledBlink(count,ts,te)
    count=count or 1
    ts=ts or 100
    te=te or 100
    led(0) led(0)
    for i=1,count do
        led(1)
        dms(ts)
        led(0)
        dms(te)
    end
    led(0) led(0)
end
function applyMbusFilter(filter)
	filter=filter or ""
	mVDF("purge")
	mVDF("populate", hexToBin(filter))
	mVDF("activate", 0)
	mVDF("show")
end
function getCC() if ex("_hw_features", "CC:1") then local _, res2=ex("_cc") p("CC",res2)return res2 else return 0 end end
function mBusControl(state, baudR, parity, stopB, dataBits, preheat)
    state=state or 0
    baudR=baudR or mbus_baud_rate
    parity=parity or 2
    stopB=stopB or 1
    dataBits=dataBits or 8
    preheat=preheat or mbus_default_preheat
    local mbh="M-Bus setup: "
    local mbp="M-Bus power: "
    if state==1 then
        api.mbusSetup(baudR, parity, stopB, dataBits)
        p(mbh,"Baud rate: "..baudR,"Parity: ".. parity,"Stop byte: ".. stopB,"Data byte: ".. dataBits)
        p(mbh,"Preheat:"..tostring(preheat))
        p(mbp,"ON")
        p(mSt(state))
        dms(preheat)

    else
        p(mSt(state))
        p(mbp,"OFF")
    end
end
function parse_mbus_frame(payload)
    local p_addr=sb(payload, 6)
    local id_bytes_le=ss(payload, 8, 11)
    local id_bytes_be=sr(id_bytes_le)
    local function bytes_to_hex(str)
        local hex=""
        for i=1, #str do
            hex=hex .. sf("%02X", sb(str, i))
        end
        return hex
    end
    local s_addr= bytes_to_hex(id_bytes_be)

    return p_addr, s_addr
end

function addToMbusAddresses(id)
    id=id:gsub("%s+", "")
    local addr, filter_or_index=id:match("([^:]+):(.+)")
    if not addr then
        addr=id
    end
    for i=1, #mbus_addresses do
        local existing_addr=mbus_addresses[i]
        local existing_base_addr=existing_addr:match("([^:]+)")
        if existing_base_addr==addr or existing_addr==id then
            return
        end
    end
    mbus_addresses[#mbus_addresses + 1]=id
end

function mbusPrimary(sID,eID, filter)
    tn=""
	sID=sID or 0
	eID=eID or sID
	for id=sID,eID do
		cs=id + 0x5B
		cs=cs % 256
		local b=pack.pack('<b5', 0x10, 0x5B, id, cs, 0x16)
		if sID==eID and filter then
			applyMbusFilter(filter)
		end
		tn=mqtt_topic_base .. "meter/"
		status, c, a, ci, _, raw=api.mbusTransaction(b, 500, 1)

		p("Primary=" .. tostring(id))

		if status > 0 then
			api.dumpArray(raw, "raw")
			addToTable(id,binToHex(raw))
		end
	end
	if sID ~= eID then led(0) led(0,0,0,0,0) mBusControl(0) p("Primary scan DONE")  dms(1500) ledBlink(insIDdataT,350,850) prepareDataTable(tn,true) else p("mbusPrimary sID: ",sID) p("Primary unicast DONE") return tn end
end

function wSc(mV) --waiting for the SC to be charged
    if pow_source ~= "ac" then -- only if device has battery power
        local vchkTs=gt(1)
        while true do
            local volt=api.getBatteryVoltage()
            p("V =", volt, "mV")
            if volt > mV or ((gt(1) - vchkTs) > 120000) then
                break
            end
            ex("_sleep", 10)
        end
    end
end



function mbusSecondary(Qtype, meterID, filter)
    tn=""
    local function mbusSecondaryAddressing(meterID)
        local idByte1=tonumber(string.sub(meterID, 1, 2), 16)
        local idByte2=tonumber(string.sub(meterID, 3, 4), 16)
        local idByte3=tonumber(string.sub(meterID, 5, 6), 16)
        local idByte4=tonumber(string.sub(meterID, 7, 8), 16)
        local selectMessageNoChecksum={0x68, 0x0B, 0x0B, 0x68, 0x53, 0xFD, 0x52, idByte4, idByte3, idByte2, idByte1, 0xFF, 0xFF, 0xFF, 0xFF}
        local checksum=0
        for i=5, #selectMessageNoChecksum do
            checksum=checksum + selectMessageNoChecksum[i]
        end
        checksum=checksum % 256
        local selectMessage=pack.pack("b17", selectMessageNoChecksum[1], selectMessageNoChecksum[2], selectMessageNoChecksum[3], selectMessageNoChecksum[4],
                                        selectMessageNoChecksum[5], selectMessageNoChecksum[6], selectMessageNoChecksum[7], selectMessageNoChecksum[8],
                                        selectMessageNoChecksum[9], selectMessageNoChecksum[10], selectMessageNoChecksum[11], selectMessageNoChecksum[12],
                                        selectMessageNoChecksum[13], selectMessageNoChecksum[14], selectMessageNoChecksum[15], checksum, 0x16)
        local res, _, _, _, ans=api.mbusTransaction(selectMessage, 1000, 1)
        local statusSelect=(ans and ans:byte(1)==0xE5) and "Select successful" or "Select failed"
        dms(150)
        local requestMessage=pack.pack("b5", 0x10, 0x7B, 0xFD, 0x78, 0x16)
        local res, c, a, ci, ans, raw=api.mbusTransaction(requestMessage, 2000, 3)
        local statusRequest=(res > 0) and "Request successful" or "Request failed"
        local userData=statusRequest and raw or ""
        return statusSelect, statusRequest, userData
    end

    local function hex(n)
        return string.format("%08X", n)
    end

    local function toHex(val)
        val=val or 0
        local hex=string.format("%X", val)
        local len=#hex
        if len < 2 then
            len=2
        elseif len % 2==1 then
            len=len + 1
        end
        return "0x" .. string.format("%0" .. len .. "X", val)
    end

	wSc(SCmV)
    if Qtype==SSCAN then
        e, cnt=api.mbusScan("")
        p("Found " .. tostring(cnt) .. " devices")
        for j=1, cnt do
            p("found id=" .. hex(e[j].identification) .. ", manid=" .. e[j].manufacturer .. ", ver=" .. e[j].version .. ", medium=" .. e[j].medium)
            statusSelect, statusRequest, userData=mbusSecondaryAddressing(hex(e[j].identification))
            api.dumpArray(userData, "raw")
            tn=mqtt_topic_base .. "scan/secondary/"
            p("Publishing meter " .. tostring(j) .. " of " .. tostring(cnt))
            addToTable(toHex(e[j].manufacturer or ""),binToHex(userData or ""))
        end
        mBusControl(0)
        p("Secondary scan DONE")
        prepareDataTable(tn,nil)
    elseif Qtype==SUNICAST then
		applyMbusFilter(filter)
        statusSelect, statusRequest, userData=mbusSecondaryAddressing(meterID)
        api.dumpArray(userData, "raw")
        tn=mqtt_topic_base .. "meter/"
        p("Publishing data for ID: " .. meterID)
        addToTable((meterID or ""),binToHex(userData or ""))
        p("DONE S UNICAST")
        mBusControl(0)
        prepareDataTable(tn,nil)
    end
end

function MQTT_checkConnected()
    if at("AT+CMQTTDISC?", nil, nil, "+CMQTTDISC: 0,0", "+CMQTTDISC: 0,") >= 0 then
        return true
    end
    return false
end
function processAddresses(addresses)
    for _, addr_entry in ipairs(addresses) do
        local addr, filter_or_index=addr_entry:match("([^:]+):(.+)")
        if addr then
            local num_addr=tonumber(addr)
            local filter
            if  #addr < 3 and num_addr < 256  then
                if filter_or_index:match("^%d+$") then
                    local index=tonumber(filter_or_index) + 1
                    filter=common_filters[index]
                    if not filter then
                        p("Error: Invalid common_filters index " .. filter_or_index .. " for address " .. addr)
					end
                else
                    filter=filter_or_index
                end
                mbusPrimary(num_addr,num_addr, filter)
            else
                if filter_or_index:match("^%d+$") then
                    local index=tonumber(filter_or_index) + 1
                    filter=common_filters[index]
                    if not filter then
                        p("Error: Invalid common_filters index " .. filter_or_index .. " for address " .. addr)
                    end
                else
                    filter=filter_or_index
                end
                mbusSecondary(SUNICAST, addr, filter)
            end
        else
            if #addr_entry <= 3 and  tonumber(addr_entry) < 254 then
                mbusPrimary(addr_entry,nil, nil)
            elseif #addr_entry >= 6 then
                mbusSecondary(SUNICAST, addr_entry)
            end
        end
    end
    if insIDdataT > -1 then
	if not MQTT_checkConnected() then
		MQTT_stop()
		MQTT_SSL_Start()
    end
    p("sending unicast table") prepareDataTable(tn,nil) end

end

function MQTT_SSL_Start()
    if mqtt_mode ~= "SSL" and mqtt_mode ~= "TCP" then
        if mqtt_port==8883 then
            mqtt_mode="SSL"
        else
            mqtt_mode="TCP"
        end
    end

	at("AT+QCPMUCFG=1,2")
-- EDRX Activation
	at('AT+CEDRXS=2,5,"1111"')
	at('AT+QCPTWEDRXS=2,5,"0000","1111"')

    if mqtt_mode=="SSL" then
	at("AT+CSSLCFG=\"sslversion\",0,4")

    end
    if mqtt_mode=="SSL"  and (mqtt_user==nil or mqtt_user=="")then
		at("AT+CSSLCFG=\"authmode\",0,0")
    else
        at("AT+CSSLCFG=\"authmode\",0,1")
    end

	if mqtt_client_name==nil then
		mqtt_client_name=mqtt_user_base .. getIMSI()
	end

	at("AT+CMQTTSTART", nil, nil, "+CMQTTSTART: 0")

	if mqtt_mode ~= "SSL" then
		at('AT+CMQTTACCQ=0,"'..mqtt_client_name.. '",0')  -- ,0 for plain
	else
        at('AT+CMQTTACCQ=0,"'..mqtt_client_name.. '",1')  -- ,1 for SSL/TLS
        at('AT+CMQTTSSLCFG=0,0')
	end

    local connect_result=-1
	if mqtt_user ~= nil and mqtt_user ~= "" then
        connect_result=at('AT+CMQTTCONNECT=0,"tcp://'.. mqtt_server..":".. mqtt_port ..'",300,1,"'..mqtt_user..'","'..mqtt_password..'"', mqtt_timeout+10000, 0, "+CMQTTCONNECT: 0,0|+CMQTTCONNECT: 0,23", "ERROR|+CMQTTCONNECT: 0,")
	else
		connect_result=at('AT+CMQTTCONNECT=0,"tcp://'.. mqtt_server..":".. mqtt_port ..'",300,1', mqtt_timeout+10000, 0, "+CMQTTCONNECT: 0,0|+CMQTTCONNECT: 0,23", "ERROR|+CMQTTCONNECT: 0,")
	end

    if   connect_result >= 0 then
            p("Successfully connected to MQTT")
        else
            p("Failed to connected to MQTT")
    end

end

function MQTT_abortIfNotConnected()
	if not MQTT_checkConnected() then
		MQTT_stop()
		MQTT_SSL_Start()
		if not MQTT_checkConnected() then
			return true
		end
	end
	return false
end
function MQTT_subscribe(topic)
	local agn=3
	while agn > 0 do
		local res=at("AT+CMQTTSUB=0,"..(#topic)..",2", 10000, 0, "$>")
		if res >= 0 then
			res=at(topic, nil, nil, "+CMQTTSUB: 0,0", nil, nil, nil, 0, 1)
			if res >= 0 then
				return true
			end
		end
		if MQTT_abortIfNotConnected() then
			return false
		end
		agn=agn - 1
	end
	return res
end

function MQTT_stop()
	at("AT+CMQTTDISC=0,60")
	at("AT+CMQTTREL=0")
	at("AT+CMQTTSTOP")
    p("Disconnecting from MQTT")
    at('AT+CEDRXS=0') -- Disable eDRX
    at('AT+QCPTWEDRXS=0') -- Disable PTW/eDRX
	at("AT+CPSMS=1;+QCPMUCFG=1,4", nil, nil, nil, nil, nil, nil, nil, 1)

end

js=nil
function json(key, value, clear)
	if js==nil or clear then
		js="{"
	else
		js=js .. ","
	end
	js=js .. '"' .. tostring(key) .. '":"' .. tostring(value) .. '"'
end

function MQTT_publishJson(topic)
	js=js .. "}"
	MQTT_publish_single(topic, js, 1, 1)
	js=nil
end

imsi=nil
function getIMSI() return imsi or (string.gmatch(api.nbAT("IMSI?", 5000), "([0-9]+)")() or "000000000000000") end
function gt(state) return api.getTick(state) end
function ns() return api.getTick(2) end
function at(...)  dms(100)  local res _,res=api.nbAT(...) return res end
function err(...) return ex("_get_last_error", ...) end
function isInArray(el, arr) for _, v in ipairs(arr) do if el==v then return true end end return false end
function b(d) return pp("b", d) end
function s(p, v) sv(p, v, true) end
function onNbTAU()
	p("TAU timer reporting to network...")
	tauTs=ns()
end
function MQTT_receive()
	MQTT_subscribe(mqtt_topic_base.."up/#")
    p("Subscribe "..mqtt_topic_base.."up/#")
	local function MQTT_waitForRetainedMessage(timeout)
		local payLen
		local topLen
		local topic
		local ansbuf,res=api.nbAT(" ", timeout, nil, "+CMQTTRXTOPIC: 0,", nil, 0, nil, 0, 1)
		if res >= 0 then
			for topLenStr in string.gmatch(ansbuf, "+CMQTTRXTOPIC: 0,([0-9]+)") do
				topLen=tonumber(topLenStr)
			end
			if topLen ~= nil then
				topic,res=api.nbAT(" ", 1000, nil, nil, nil, -2, nil, 0, nil)
				topic=topic:gsub("%s+","")
				if #topic==topLen then
					ansbuf,res=api.nbAT(" ", 1000, nil, "+CMQTTRXPAYLOAD: 0,", nil, -3, nil, 0, nil)
					if res >= 0 then
						for payLenStr in string.gmatch(ansbuf, "+CMQTTRXPAYLOAD: 0,([0-9]+)") do
							payLen=tonumber(payLenStr)
						end
						if payLen ~= nil then
								payload,res=api.nbAT(" ", 2000, nil, nil, nil, -2, nil, 0, 1, payLen) -- fixed amount
							if #payload==payLen then
								return topic, payload
							end
						end
					end
					return topic, nil
				end
			end
		end
		return nil, nil
	end

	local top, pay=MQTT_waitForRetainedMessage(mqtt_timeout)
	p(top,pay)
	if top==nil then
		p("Nothing received")
	elseif top:find("config") then
        p("New received")
        p("topic:",top,"payload:",pay)
		if compare_json_store(pay) then
			MQTT_publish_single(top, "", 1, 1) -- clear
			MQTT_publish_single(mqtt_topic_base.."config", pay, 1, 1) -- send back
		end
	elseif top:find("action") then
		if pay ~= nil and #pay > 1 then
			function clearAction()
				MQTT_publish_single(extop, "", 1, 1)
			end

			local func, err=loadstring(pay)
			if func then
				extop=top
				func()
				extop=nil
			else
				p("Error executing: ", err)
			end
			func=nil
		end
	else
		p("Unknown topic ", top, " dropping...")
	end

	if top ~= nil then
		ex("clearSwWdogNoCom")
	end
end
function onWake()
	api.getTick(0,1)
	ex("_sysclk", "48000000")
	ex("clearSwWdogNoSleep")
    ex("_print_mode","CONNECTED")
    MQTT_SSL_Start()
	if not MQTT_checkConnected() then
		MQTT_stop()
		MQTT_SSL_Start()
    end


	local reas, ser, nb=ex("_get_wake_info")
	local ye, mo, day, ho, mi, se=api.getTimeDate()
	p("onWake(), reason =", reas)
	p("Uptime =", ns()-startTs, "sec")
	p("serial =", ser)
	p("NB-IoT=", nb)
	p("Consumed Energy=",getCC())
	p("time =", ye, mo, day, ho, mi, se)
	if reas ~= "timer" then
		nextWR=0
	end
	if nextWR==0 then
		p("BEACON", lBTs, ns())
		lBTs=ns()
	else
		p("GATHER", lGTs, ns())
		lGTs=ns()
		if reinitOnWakeGather==1 then
			api.nbAT("REINITIALIZE")
		end
	end

	if lGTs <= 0 then
		lGTs=ns()
	end

	if lBTs <= 0 then
		lBTs=ns()
	end

    local function addSecondsToDate(i)
        local y, M, d, h, m, s=api.getTimeDate()
        local function l(y) return y%4==0 and(y%100~=0 or y%400==0)end
        local function dm(m,y) local d={31,l(y)and 29 or 28,31,30,31,30,31,31,30,31,30,31} return d[m]end
        s=s + i
        while s >= 60 do s=s - 60; m=m + 1 end while s < 0 do s=s + 60; m=m - 1 end
        while m >= 60 do m=m - 60; h=h + 1 end while m < 0 do m=m + 60; h=h - 1 end
        while h >= 24 do h=h - 24; d=d + 1 end while h < 0 do h=h + 24; d=d - 1 end
        while d > dm(M,y) do d=d - dm(M,y); M=M + 1 if M > 12 then M=M - 12; y=y + 1 end end
        while d <= 0 do M=M - 1 if M <= 0 then M=M + 12; y=y - 1 end d=d + dm(M,y) end
        while M > 12 do M=M - 12; y=y + 1 end while M <= 0 do M=M + 12; y=y - 1 end
        return  y, M, d, h, m, s
    end
    local function formatdt(y, M, d, h, m, sec)
    return string.format("%04d-%02d-%02dT%02d:%02d:%02d", y, M, d, h, m, sec)
    end
	while true do
		rcntr=bb(g(2)+1)
		sv(2, rcntr)
		noSl=0 -- flag used by scheduled gathering

		insec=pDays*86400+pHrs*3600+pMins*60 - (ns() - lGTs)
		insecb=beaconT*15*60 - (ns()-lBTs)
		if nextWR==1 then
            mBusControl(1)
			processAddresses(mbus_addresses)
			mBusControl(0)
		else -- beacon
            local function sendBeacon(rcntr, reason, uptime, sinceTau, lastGatherTs, lastBeaconTs, version)
                local ans, res=api.nbAT("AT+CSQ", 6000, nil, "+CSQ:", "99", 3)
                tn=mqtt_topic_base .. "beacon"
                local y, M, d, h, m, sec=api.getTimeDate()
                json("signal", tonumber(string.match(ans, "+CSQ: ([0-9]+),%d.*")) or 0, 1)
                json("relative-message-counter", rcntr)
                json("time", formatdt( y, M, d, h, m, sec))
                json("next-beacon", formatdt( addSecondsToDate(lastBeaconTs)))
                if #daysList > 0 then
                    json("next-gather", formatdt(daysListYear,daysListMonth,daysList[#daysList],startHour,(startMin),0))
                end
                json("wake-up-reason", reason)
                json("uptime-seconds", uptime)
                if pow_source ~= "ac" then
                    json("power-mV", api.getBatteryVoltage())
                    json("batt-disch-mA",getCC())
                end
                json("lua-version", version)
                MQTT_publishJson(tn)
            end
            sendBeacon(rcntr, reas, ns()-startTs, ns()-tauTs, insec, insecb, ver)
            MQTT_receive()
        end
                local function checkScheduledGather(nextbeaconinsec, manualgather)
                        if manualgather==1 then
                            return
                        end
                    if numberOfDays==0 then
                        return
                    end
                    local y,M,d,h,m,s=api.getTimeDate()
                    local function get_days_in_month(month, year)
                        local function is_leap_year(year)
                            return year % 4==0 and (year % 100 ~= 0 or year % 400==0)
                        end
                        return month==2 and is_leap_year(year) and 29 or ("\31\28\31\30\31\30\31\31\30\31\30\31"):byte(month)
                    end
                    local function get_day_of_week(dd, mm, yy)
                        local mmx=mm
                        if mm==1 then mmx=13  yy=yy-1 end
                        if mm==2 then mmx=14  yy=yy-1 end
                        local val8=dd + (mmx*2) + math.floor(((mmx+1)*3)/5) + yy + math.floor(yy/4) - math.floor(yy/100) + math.floor(yy/400) + 2
                        local val9=math.floor(val8/7)
                        local dw=val8-(val9*7)

                        if (dw==0) then
                            dw=7
                        end
                        return dw
                    end

                    local function month2ts(d, h, m, s)
                        return (s + 60*(m + 60*(h + 24*d)))
                    end

                    if #daysList==0 then
                        api.nbAT("TIME_SYNC",1) -- this will sync the time
                        y,M,d,h,m,s=api.getTimeDate()
                        local gM=M
                        local gy=y
                        local tdc=get_days_in_month(gM, gy)
                        if (h > startHour or (h==startHour and m > 0)) and d==tdc then
                            -- last day of month and AFTER sampling hour -> generate for next month
                            gM=gM + 1
                            if gM >= 13 then
                                gM=1
                                gy=gy + 1
                            end
                            tdc=get_days_in_month(gM, gy)
                        end
                        local dl={}
                        for di=1, tdc do
                            if workdayOnly then
                                local work_days={2, 3, 4, 5, 6}
                                if isInArray(get_day_of_week(di, gM, gy), work_days) then
                                    dl[#dl + 1]=di
                                    p("candidate-scheduled-workdays", #dl, daysListYear, daysListMonth, di)
                                end
                            else
                                dl[#dl + 1]=di
                                p("candidate-scheduled", #dl, daysListYear, daysListMonth, di)
                            end
                        end
                        daysListMonth=gM
                        daysListYear=gy
                        schDays=""
                        for i=0, numberOfDays-1 do
                            if #dl - i > 0 then
                                daysList[#daysList + 1]=dl[#dl - i]
                                p("scheduled", #daysList, daysListYear, daysListMonth, dl[#dl - i], tostring(startHour) .. ":" ..  tostring(startMin))
                                if reportScheduled then
                                    if schDays=="" then
                                        schDays=dl[#dl - i]
                                    else
                                        schDays=schDays .. "|" .. dl[#dl - i]
                                    end
                                end
                            end
                        end
                        if reportScheduled then
                            tn=mqtt_topic_base .. "scheduled"
                            p("Publishing scheduled data plan...")
                            json("Year", daysListYear,1)
                            json("Month", daysListMonth)
                            json("Day-list", schDays)
                            json("Hour", tostring(startHour) .. ":" ..  tostring(startMin))
                            MQTT_publishJson(tn)
                        end
                    end
                    local diff=-1
                    if y==daysListYear and M==daysListMonth then
                        while true do
                            local nowts=month2ts(d, h, m, s)
                            local nextts=month2ts(daysList[#daysList], startHour, startMin, 0)
                            diff=nextts - nowts
                            if diff < 0 then
                                daysList[#daysList]=nil
                                if #daysList==0 then
                                    break
                                end
                            else
                                break
                            end
                        end
                    else
                        if d==get_days_in_month(M, y) then
                            local nowts=month2ts(0, h, m, s)
                            local nextts=month2ts(daysList[#daysList], startHour, startMin, 0)
                            diff=nextts - nowts
                        end
                    end

                    if diff >= 0 and diff <= nextbeaconinsec then
                        p("consume-scheduled", #daysList, daysListYear, daysListMonth, daysList[#daysList], tostring(startHour) .. ":" ..  tostring(startMin))
                        daysList[#daysList]=nil
                        -- schedule
                        noSl=1
                        nextWR=1
                        p("Sleep before scheduled gathering...")
                        diff=diff + api.randInt(0, randomizeSeconds)
                        MQTT_stop()
                        ex("_sleep", diff)
                    end
                end

		checkScheduledGather(insecb, noSl)

		if noSl==0 then
			if insec <= 10 then
				insec=10
			end
			if insecb <= 10 or insecb > 3600*48 then
				insecb=10
			end

            if insec >= insecb or (pDays==0 and pHrs==0 and pMins==0) then


                p("beacon next :", formatdt(addSecondsToDate(insecb)))
				p("beacon next", insec, insecb)
				nextWR=0 -- next is beacon
				api.wakeUpIn(0,0,0,insecb)
			else
                p("gather next",formatdt(addSecondsToDate(insec)))
				p("gather next",insec, insecb)
				nextWR=1 -- next is gather
				api.wakeUpIn(0,0,0,insec)
			end
			MQTT_stop()
			return -- go to sleep...
		else
			mBusControl(0)
            MQTT_SSL_Start()
		end
	end
end

function normalize_json(json)
	return json:gsub('%s*:%s*',':'):gsub('%s*,%s*',','):gsub('%[%s*','['):gsub('%s*%]',']'):gsub('{%s*','{'):gsub('%s*}','}'):gsub('\n',''):gsub('\r',''):gsub('%s*$','')
end
function parse_object(s)
	local obj={}
	for k, v in s:gmatch('"(.-)"%s*:%s*(%b{})') do obj[k]=parse_object(v) end
	for k, v in s:gmatch('"(.-)"%s*:%s*(%b[])') do obj[k]=parse_array(v) end
	for k, v in s:gmatch('"(.-)"%s*:%s*(0x%x+)') do obj[k]=tonumber(v) end
	for k, v in s:gmatch('"(.-)"%s*:%s*(%d+)') do obj[k]=tonumber(v) end
	for k, v in s:gmatch('"(.-)"%s*:%s*"(.-)"') do obj[k]=v end
	return obj
end
function parse_array(s)
	local arr, i, index={}, 1, 2
	while index < #s do
		local char=s:sub(index, index)
		if char=='{' then
			local obj_start, obj_end=s:find('%b{}', index)
			arr[i], index=parse_object(s:sub(obj_start, obj_end)), obj_end + 1
		elseif char=='[' then
			local arr_start, arr_end=s:find('%b[]', index)
			arr[i], index=parse_array(s:sub(arr_start, arr_end)), arr_end + 1
		elseif char=='"' then
			local val_start, val_end, value=s:find('"(.-)"', index)
			arr[i], index=value, val_end + 1
		elseif s:sub(index, index + 1)=='0x' then
			local val_start, val_end, value=s:find('(0x%x+)', index)
			arr[i], index=tonumber(value), val_end + 1
		elseif char:match('[0-9]') or char=='-' then
			local val_start, val_end, value=s:find('(-?%d+%.?%d*)', index)
			arr[i], index=tonumber(value), val_end + 1
		else index=index + 1 end
		if s:sub(index,index)==',' then index=index + 1 end
		i=i + 1
	end
	return arr
end
function parse_json(json, dry_run)
	json=normalize_json(json)
	local index, json_len=1, #json
	while index <= json_len do
		local key_start, key_end, key=json:find('"(.-)"%s*:', index)
		if not key_start then break end
		index=key_end + 1
		local char=json:sub(index, index)
		local result
		p("parse: ", key)
		get_mem()
		if char=='{' then
			local obj_start, obj_end=json:find('%b{}', index)
			result, index=parse_object(json:sub(obj_start, obj_end)), obj_end + 1
		elseif char=='[' then
			local arr_start, arr_end=json:find('%b[]', index)
			result, index=parse_array(json:sub(arr_start, arr_end)), arr_end + 1
		elseif char=='"' then
			result, index=json:match('"(.-)"()', index)
		elseif json:sub(index, index + 1)=='0x' then
			local v=json:match('(0x%x+)()', index)
			result, index=tonumber(v), index
		else
			local v=json:match('(-?%d+%.?%d*)()', index)
			result, index=tonumber(v), index
		end
		if not dry_run then _G[key]=result p(key, " <= ", result) end
	end
end
function compare_json_store(newjson, justLoad)
	local jsonCfg=""
	local cfgLen=g(16, 0)
	if cfgLen ~= 0 then
		jsonCfg=g(18, "bytes", cfgLen)
	end

	if justLoad then pcall(parse_json, jsonCfg) return false end
	if newjson==nil then return false end
	newjson=normalize_json(newjson)
	p("old: ", jsonCfg)
	p("new: ", newjson)
	if newjson ~= jsonCfg then
		p("Load New!")
		local ok=pcall(parse_json, newjson, true)
		if ok then
			s(16, #newjson)
			sv(18, "bytes", newjson)
			pcall(parse_json, newjson)
			return true
		else
			p("new config not valid!")
		end
	end
    if newjson==jsonCfg then
        p("Config it is a same !")
        pcall(parse_json, newjson)
        return true
    end
	return false
end
function MQTT_publish_single(path, value, qos, retained, is_lwt)
	p("Publishing to: ", path)
	p(string.format("Value (%d bytes): ", #value), value)
	local agn=3
	local topic_cmd=is_lwt and "AT+CMQTTWILLTOPIC=0," or "AT+CMQTTTOPIC=0,"
	local payload_cmd=is_lwt and "AT+CMQTTWILLMSG=0," or "AT+CMQTTPAYLOAD=0,"
	if #value ==0 then
		MQTT_stop() -- allows to send empty payload
		if MQTT_abortIfNotConnected() then
			return false
		end
	end
	while agn > 0 do
		local res=at(topic_cmd..(#path), 5000, 0, "$>")
		if res >= 0 then
			res=at(path, nil, nil, nil, nil, nil, nil, 0)
			if res >= 0 then
				if #value > 0 then
					local payload_qos=is_lwt and ","..qos or ""
					res=at(payload_cmd..(#value)..payload_qos, 5000, 0, "$>")
					if res >= 0 then
						res=at(value, nil, nil, nil, nil, nil, nil, 0)
					end
				end
				if not is_lwt and res >= 0 then
					res=at("AT+CMQTTPUB=0,"..qos..",60,"..retained, mqtt_timeout, 0, "+CMQTTPUB: 0,0", nil, nil, nil, nil, 1)
					if res >= 0 then
						return true
					end
				elseif is_lwt and res >= 0 then
					return true
				end
			end
		end
		if MQTT_abortIfNotConnected() then
			return false
		end
		agn=agn - 1
	end
	return false
end


function onStartup()

	p("NBIoT - MQTT MBus , V"..ver)
	if not ex("_hw_features", "SIM7022:1") then
		p("Your hardware is not supported!")
		led(1)
		while true do end
	end

    if atDebug then
		at("AT_DEBUG_ON")
	end
	ex("_sysclk", "48000000") -- speed up CPU
	at("APN=" .. APN)
	at("PLMNID=" .. PLMNID)
	ex("setSwWdogNoComReloadValue", noComWdg)
	api.nbAT("TIME_SYNC",1)
    createDataTable()
	local sysinfo=ex("_sysinfo")
	fwma=sysinfo["ver"]["major"]
	fwmi=sysinfo["ver"]["minor"]
	fwbf=sysinfo["ver"]["bugfix"]
	p(sysinfo["ver"]["major"] ..".".. sysinfo["ver"]["minor"] .. "." .. sysinfo["ver"]["bugfix"])
	local modelName=sysinfo["model"]["name"] or "unknown"
	pow_source=sysinfo["model"]["source"] or "unknown"
	local SN=sysinfo["SN"]
	local function sendHardwareInfo(version, fwma, fwmi, fwbf, modelName, pow_source, SN)
        local y, M, d, h, m, sec=api.getTimeDate()
		tn=mqtt_topic_base .. "hardware-info"
        json("time", string.format("%04d-%02d-%02dT%02d:%02d:%02d", y, M, d, h, m, sec),1)
		json("IMEI", api.nbAT("IMEI?") or "")
		json("IMSI", getIMSI()or "")
		json("SN", SN)
		json("hw-model", ex("_hw_features") or "")
		json("model-name", modelName)
		json("firmware-version", fwma.."."..fwmi.."."..fwbf)
		json("lua-version", version)
		json("source", pow_source)
        if pow_source ~= "ac" then
            json("consumed-mA", getCC())
        end
		MQTT_publishJson(tn)
	end

	local function sendErrorReport()
		local _, reas=ex("_reset_reason")
		local sh=err("SHORT", 0, -1)
		tn=mqtt_topic_base .. "error-report"
		json("reset-reason", reas, 1)
		if #sh > 0 then
			json("short", sh)
		end
		local e=ex("_get_last_error", "STDOUT_RAW",0,-1)
		if #e > 0 then
			json("has-serial-log", 1)
		else
			json("has-serial-log", 0)
		end

		MQTT_publishJson(tn)
		if #e > 0 then
			tn=tn .. "/serial-log"
			MQTT_publish_single(tn, e, 1, 1)
		end
	end

	mqtt_topic_base=mqtt_topic_base .. getIMSI() .. '/'
	MQTT_SSL_Start()
	if sendErrorLog==1 then sendErrorReport() end

	sv(2, 0)
	startTs=ns()
	tauTs=ns()

	compare_json_store(nil, true) -- just load old config
	sendHardwareInfo(ver, fwma, fwmi, fwbf, modelName, pow_source, SN)

	wSc(SCmV)

	mBusControl(1)
    ex("_sleep_mode",99)
    led(1,0,0,0,"L123456789H987654321LLLLL", 50) -- LED Signalization M-Bus scan process
    --mbusSecondary(SSCAN, nil)           -- Uncomment for initial secondary scan
	mbusPrimary(0,252,nil)	            -- Uncomment for initial primary scan

    ex("_sleep_mode",0)

    if atDebug then
        p(mbus_primary, "mbus_primary")
    end
	MQTT_receive()                      -- subscribe configuration from broker
	--MQTT_stop()

    if not memDebug then
        get_mem=nil
    end
    onStartup=nil
end

Base Principles​

script explanation

Communication diagram

Key principles of the converter when using MQTT

  • After initialization, the converter scans for the presence of meters using primary address scanning and publishes the obtained data to the MQTT server in a topic named according to the SIM card’s IMSI.
  • The converter sends the current status of the meters via messages at a configurable interval through the MQTT broker.
  • The converter schedules automatic meter reading based on the configuration.
  • The converter allows data collection using a random distribution of the sending interval, e.g., several minutes, to prevent broker overload.
  • Additionally, the converter regularly publishes a “beacon” message, which is a short message indicating that the device is operational and connected to the network. After sending the beacon message, the device checks for any incoming configuration messages or actions scheduled on MQTT.
    • This means that if you send a remote configuration, it will only be applied after the publication of a beacon message.
    • It should also be noted that only one configuration or action message is applied per beacon message publication. For example, if you send two configuration messages, the first will be applied after one beacon, and the second after the next.

Boot-up and scheduled actions diagram

Boot-up and scheduled actions diagram

info

Pressing the button within the device wakes up the device and sends a beacon message, this does not change any scheduled readings or beacons.

The device periodically publishes a beacon message to the MQTT broker to indicate that it is operational and connected to the network. The beacon message is a short message that contains the device's status and information. After the beacon is published, the device subscribes to the acrios/<IMSI>/up/# topic to receive configuration and actions messages. The device clears acrios/<IMSI>/up/config message after applying the changes and publishes the changed parameters to the acrios/<IMSI>/config topic. The device executes the actions from the acrios/<IMSI>/up/action topic. Actions can be scheduled to execute every time the device publishes the beacon message.

Device Installation​

info

The device supports multiple devices to up to 16 UL (unit load).

Make sure the meters, if using multiple, have a different primary address or that the script is detecting them based on the secondary address.

To install the converter, follow these steps:

  1. Unscrew the 4 screws holding the lid and put it aside.
  2. If the battery is inserted inside, it should be disconnected. Put it aside.
  3. Insert the SIM card into the appropriate slot – see the indication on the PCB desk.
  4. Pass the data cable through the left cable gland and connect the communication interface wires to the MBUS+ and MBUS- terminals. The polarity of the wires does NOT matter.
  5. Screw the antenna onto the appropriate external connector.
  6. Connect the battery to the appropriate connector – see the indication on the PCB desk.
info

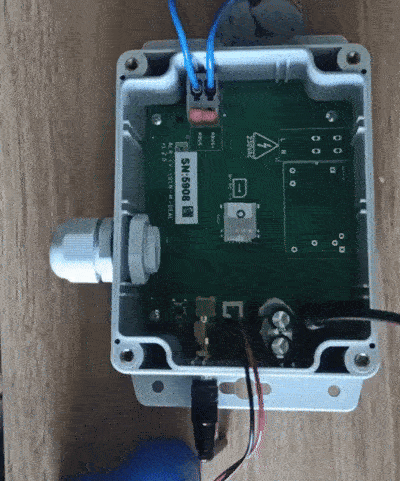

After being connected, the device performs an M-Bus scan, which starts once the bootloader has completed. The LED then blinks to indicate the number of detected M-Bus meters.

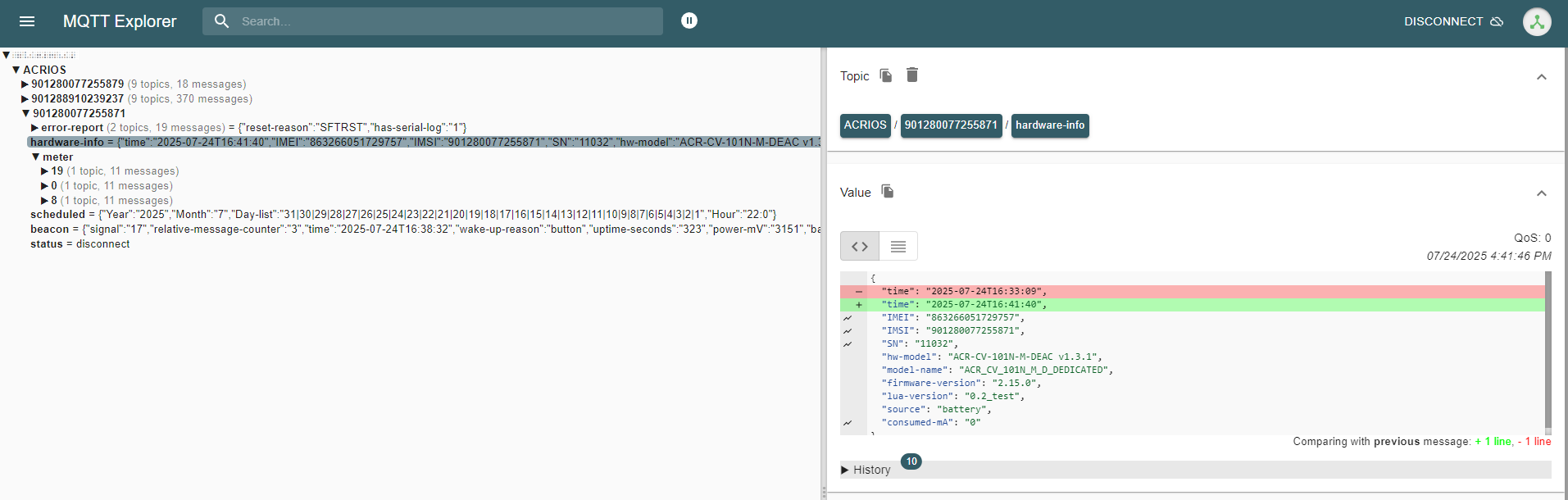

You can also verify successful device connection if you have access to an MQTT client.

Finally, a scan can be performed manually using ACRIOS GUI.

  1. Place the lid back on the box and screw it on – it should hold tightly and should be screwed on evenly to preserve water proof properties.
  2. Secure the device with screws and Mounting holes or via other means such as cable ties.

You may also see N-M-D quick start guide for further details.

Initial Meter Scan​

The device executes primary or secondary scan as part of the start-up procedure - based on your preference (primary addressing is the default). This scan finds and saves all the meters. If you wish to re-initiate the device and therefore the scan, see the procedure below.

Primary Addressing

Primary address is a single number between 0-252, each representing a meter. The numbering is explained in the following table.

AddressFunction
0Factory default address.
1-250Addresses that can be assigned to slaves. (Primary addresses)
251-252Reserved for future use.
253Indicates that addressing is performed at the network layer instead. (Secondary addressing procedure)
254Broadcast, meters reply with their addresses. (Causes collision, test purposes only)
255Broadcast, meters do not reply.
note

Note, that if there are two meters using the same address connected to a single converter, this will result in a conflict. Ensure that you connect meters with a different primary addresses to a converter (max capacity is 16 UL) if you want to use primary scan.

The secondary address

It consists of 4 parts:

  • 4 bytes being the device ID (serial #)
  • 2 bytes being the manufacturer’s identifier
  • 1 byte being the device version
  • 1 byte being the device media

The benefit of secondary addressing is that there is no need to reconfigure primary addresses, but the meters will appear in the MQTT logs under their secondary address (usually a long string of numbers and letters).

Lua Code Configuration Handling the Initial Scan​

The device executes primary or secondary scan as part of the start-up procedure. This scan finds and saves all the meters. If you wish to re-initiate the device and therefore the scan as well see the procedure below.

The following code is handling the initial scan. It can be found at the end of the code in the onStartup() function - line 972 or nearby (if code gets changed in future):

The code handling the scan can be found on line 1053 or nearby (if code gets changed in future).

Either pick primary, or secondary scan by commenting and uncommenting individual lines.

led(1,0,0,0,"L123456789H987654321LLLLL", 50) -- LED Signalization M-Bus scan process
--mbusSecondary(SSCAN, nil)           -- Uncomment for initial secondary scan
mbusPrimary(0,252,nil)	              -- Default scan - primary addresses

Using Primary Scan​

Scanning through the all primary addresses

The following configuration will scan for all the possible primary addresses.

note

Note that this scan will take quite a while, as scanning this many addresses is time consuming (several minutes).

mbusPrimary(0,252,nil)	            -- 0 is the starting address, 252 is the last address (can not be higher), the third argument must be nil

Scanning through addresses starting at 0

The following configuration will scan for the first 20 primary addresses. This is especially useful if you know the addresses beforehand and do not wish to scan for too long (this would reduce the scanning time to around 15-20 seconds).

example

Your meters are at primary addresses between 0 and 20 in this case. The scan now takes considerably shorter time to execute, but if there is any meter with primary address of 21 and higher, it will not be registered.

mbusPrimary(0,20,nil)	            -- 0 is the starting address, 20 is the last address, the third argument must be nil

Scanning through addresses starting at some number

You can also scan for any range of addresses,e.g. from primary address 50 to 80:

mbusPrimary(50,80,nil)	            -- 50 is the starting address, 80 is the last address, the third argument must be nil

Using Secondary Scan​

If you want to use only secondary address scan upon the device start, the code should look as following.

mbusSecondary(SSCAN, nil)           -- This line needs to be uncommented or added
--mbusPrimary(0,252,nil)	    -- Comment or delete this line

Visual LED Scan​

The device first needs to go through bootloader – either after powering it up or after restart. This is indicated by LED dimly getting dimly lit up.

Bootloader finishes after couple minutes after the device is powered up (or restarted by repeated button press). You may skip the bootloader by holding the button and letting go once LED lights up.

Once the bootloader is finished or skipped, the device will do the following:

info

Tap the button 7x quickly in order to restart the device – this re-initializes bootloader.


Here is how the visual indication looks:

scan

  • It takes a while before the scan starts after skipping/running through the bootloader
  • After the bootloader finishes or is skipped, an initial scan is performed
  • During the initial scan, the LED pulses for the duration of the scan, which takes several minutes
  • After the scan, the LED blinks once per each meter detected
  • If nothing was detected, the LED does not blink at all after the scan

MQTT Client Initial Connection​

After the bootloader finishes, an initial message is sent to your MQTT client. The message contains hardware information about the converter, as well as a topic containing detected meters and their initial state.

This approach is useful because it allows you to fully inspect the state of things and whether the device has been successfully installed.

Here is an example:

initial message

MQTT Protocol​

MQTT is a M2M/IoT connectivity protocol. It was designed as an extremely lightweight publish/subscribe messaging transport. It is useful for connections with remote locations where a small code footprint is required or network bandwidth is limited. The protocol allows devices to communicate with minimal overhead and low bandwidth.

MQTT Broker​

An MQTT broker is a server that receives all messages from the clients and then routes the messages to the appropriate destination clients. The broker is responsible for receiving all messages, filtering the messages, deciding who is interested in them, and then publishing the message to all subscribed clients.

MQTT Client​

An MQTT client is any device that runs an MQTT library and connects to an MQTT broker over a network. The client can be a publisher, a subscriber, or both. We are using MQTT Explorer as an MQTT client for demonstration purposes.

References​

Here you can find useful resources regarding to use of MQTT. Please refer to them in case of need.

  1. Creation of HiveMQ MQTT Broker
  2. Creation of Mosquitto MQTT Broker
  3. MQTT Parsers

Script Parameters​

The Lua script contains a set of parameters that define the behavior of the device. The parameters can be adjusted to adapt the device’s behavior to your needs.

note

Script configuration is usually necessary only if you wish to modify it afterwards. In most cases, we supply the device with a preconfigured script.

note

-- denotes a comment in the script.

ver="1.0"
----- CONFIGURATION -----
-------- NB-IoT ---------
APN="auto"                                    -- APN for the SIM card ("auto"=autodetection)
PLMNID=0                                      -- PLMNID for the SIM card (0=autodetection) Vodafone CZ=23003
reinitOnWakeGather=0                          -- 1 for reinitialization of the NB Iot module before gathering (prevent strugling)
--------- MQTT ---------
mqtt_server= "myserver.net"                   -- broker address IP or domain name
mqtt_port=1883                                -- port
mqtt_mode="TCP"                               -- "TCP" or "SSL" or autodetection based on port (8883 for SSL, else TCP)
mqtt_user_base="acrcv-"                       -- client name template
mqtt_client_name=nil                          -- client name - set to some value, otherwise will be mqtt_user_base .. imsi
mqtt_topic_base="acrios/"                     -- topic template, will add IMSI/ .. topic name
mqtt_user= "userOne"                          -- user name (for login)
mqtt_password= "passwordOne"                  -- password (for login)
mqtt_timeout=25000                            -- timeout used for connecting and waiting for subscription
reportScheduled=true                          -- true for reporting settings to the MQTT. List of days on which gathering occurs
atDebug=false                                 -- true for debugging AT commands
memDebug=false
------- Start-up --------
nextWR=0                                      -- 1 for starting with gathering, 0 for starting with beacon
sendErrorLog=1                                -- send error log to broker after restart device

-------  Gathering timming  -------
-- scheduled --
workdayOnly=false                             -- true for workdays only, false for all days
numberOfDays=31                               -- number of days/workdays since end of month, 0 for OFF , 31 all days
startHour=10                                  -- hour of start of the readout
startMin=0                                    -- min of start of the readout
randomizeSeconds=3*60                         -- up to 7200s~2hrs of delayed start since startHour

-- periodic -- (not used)
pDays=0 -- period of days for gathering data, 7 days
pHrs=0 -- period of hours for gathering data
pMins=0 -- period of minutes for gathering data

------- Timeouts --------
beaconT=48                                   -- sending beacon (48*15min=12h) interval (n*15 minutes multiple, if zero, then ~1 minute)

--------- Other ---------
noComWdg=20*24*3600*1000                     -- no communication watchdog - resets the device if no communication is received in the specified time (20 days in milliseconds)
SCmV=3100	                                 -- minimum mV on SC before sending/publishing the message
--- CONFIGURATION END ---
lGTs=0
lBTs=0
startTs=0
tauTs=0
schDays=""
daysList={}
daysListMonth=-1
pow_source="battery"
-- M-Bus specific configuration
mbus_addresses={"0"}                          -- Default, will be overwritten by JSON config {"mbus_addresses": ["0", "8", "3"]}
common_filters={}                             -- List of common VIF/DIF filters, e.g., {"0102AABB", ...} https://wiki.acrios.com/tools/M-Bus%20Filter/
mbus_primary=""
mbus_secondary=""
mbus_default_preheat=6500                     -- Default preheat time
mbus_baud_rate=2400
-- M-Bus constants
SSCAN=0
SUNICAST=1
insIDdataT=-1	-- Helper Table counter
mbC=16		-- Max count of M-Bus devices (HW specific)

Private Broker Attributes​

Change the following parameters to connect the device to a broker:

  • mqtt_server - URL or IP of MQTT server.
  • mqtt_user - Username.
  • mqtt_password - Password.
info

Example of how it could look like:

--------- MQTT ---------
mqtt_server =  "myserver.net" -- broker
mqtt_user_base = "acrcv-"  -- client name template
mqtt_client_name = nil  -- client name - set to some value, otherwise will be mqtt_user_base .. imsi
mqtt_topic_base = "acrios/" -- topic template, will add IMSI/ .. topic name
mqtt_user =  "myusername" -- user name (for login)
mqtt_password = "mypassword"  -- password (for login)

In order to upload the script into the device, you may consult the ACRIOS GUI guide.

Once the script is uploaded, the device subscribes to the broker.

Modifying the Script for Different SIM Card Providers​

If you wish to use a SIM card coming from a different provider than Miotiq, modify the script accordingly:

A. Set these parameters to the values provided by your SIM card provider.

...
APN = "cdp.iot.t-mobile.nl" -- change this to the APN of your SIM card provider (this is an example for T-Mobile NL)
PLMNID = 20416 -- change this to the PLMNID of your SIM card provider (this is an example for T-Mobile NL)
...

B. Or set the values as following for the automatic selection.

...
APN = "auto"
PLMNID = 0
...
warning

The automatic selection has to be supported by the SIM card provider.

Gathering​

Gathering is the process of collecting data from the meters. The script allows you to configure the gathering process in this ways:

  1. Scheduled Gathering - gathering data at a specified time.
  2. Periodic Gathering - gathering data at regular intervals.
  3. Scheduled and Periodic Gathering - combining both scheduled and periodic gathering.

Scheduled Gathering​

The scheduled gathering process is scheduled to start at a specified time - startHour and startMin, which can be delayed by a random time spread parameter - randomizeSeconds. The gathering process can be set to work only on workdays or all days - workdayOnly and on a specified number of days from the end of the month - numberOfDays.

-- Scheduled gathering --
workdayOnly = false  	-- true only for workdays, false for all days
numberOfDays = 31  	-- number of days/workdays from the end of the month
startHour = 23  	-- hour of reading start
startMin = 55 		-- minute of reading start
randomizeSeconds = 140  -- up to 7200s ~2h delay of start from startHour + startMin

The device also sends beacon at the interval of beaconT. This interval begind at the moment the device is booted up.

------- Timeouts --------
beaconT = 48  -- beacon sending interval, where the value 1 equals 15 minutes (48*15min = 12h)

scheduled gathering

workdayOnly​

This parameter changes, whether the scheduled gathering happens at the weekends.

  • read out every day
workdayOnly = false  -- readout every day including weekends
  • read out on the work days
workdayOnly = true  -- readout every work day only

workDayOnly

numberOfDays​

This parameter changes, which days of the month will the meters be read out.

Changing the numberOfDays to a value of 31:

  • read out every day of the month (excluding weekends if workdayOnly is true)
numberOfDays = 31  -- reads out every day of the month
  • read out last 3 days of the month (excluding weekends if workdayOnly is true)
numberOfDays = 3  -- reads out last 3 days of the month
  • turn off scheduled gathering mode (likely when you want to use periodic mode instead)
numberOfDays = 0  -- turns off the scheduled gathering

numberOfDays

startHour, startMin a randomizeSeconds​

Sets the time when the meter is read and then adds a random value in seconds, so that data transmission from all converters does not occur at the same time – this prevents overloading the communication between the MQTT broker and the clients.

------readout will occur at 23:55 + 0-180 seconds------
startHour = 23  -- hour of the readout
startMin = 55 	-- minute of the readout
randomizeSeconds = 180 -- randomly adds between 0 - 180 seconds before the redout begins

startHour

Periodic Gathering​

The periodic gathering process sends data at regular intervals defined by the days - pDays, hours - pHrs, and minutes - pMins parameters. Also beacon beaconT is sent once every 12 hours in this example.

-- Periodic gathering ---
pDays = 0  -- period of days for sending data
pHrs = 24  -- period of hours for sending data
pMins = 0  -- period of minutes for sending data
------- Timeouts --------
beaconT = 48  -- sending beacon interval (4*15min = 1h)

periodic gathering

interesting

If you want to only use the periodic gathering process, set the numberOfDays parameter to 0. See above.

Disable Periodic Gathering​

To disable periodic gathering, set all the parameters to 0.

-- Periodic gathering --- if all three parameters are 0, it is disabled
pDays = 0
pHrs = 0
pMins = 0

Scheduled and Periodic Gathering​

You can combine both scheduled and periodic gathering processes to send data at regular intervals and specific times. After the scheduled gathering process is completed, the device will start sending data at regular intervals until the next scheduled gathering process.

Script logic​

Diagram explanation:

  1. After powering on the device and running the bootloader – it is possible to configure the device (using GUI, locally, or remote configuration) and check its connection
    • the device can also be reconfigured at any time using remote configuration
  2. The device publishes the first message, which includes the result of the initial scan of M-Bus meters
    • This way you can easily verify that the meters are properly connected
  3. The device wakes up at scheduled intervals – performing the action that is planned as the next one
    • this may be either reading and sending meter data or a beacon message
  4. The device then checks whether another action should immediately follow, and if not, it goes to sleep
    • this includes setting the next wake-up time
  5. Next, the device wakes up and continues again from step 3.

Remote Configuration and Actions​

The script supports remote device configurations via JSON files or direct action execution. In order to successfully do so, a retain message must be sent in the correct format and using appropriate topic. Also note that JSON is used to configure the device, whereas action is in a form of plain text.

Once the configuration or action is published, it appears in the up topic, up until it is applied/executed. Once done, it is removed from this topic.

In order for the configuration or action to be applied, a beacon must be triggered. This happens either in an interval based on the script, see the Gathering section, or if triggered manually.

info

In order to trigger the beacon manually, unbox the device – it has to be powered up and running – and press the button.

Remote Configuration Examples​

To configure the script parameters using MQTT retain messages, you can send JSON messages to the topic mqtt_topic_base .. "config", which the script will process and store.

The retain message ensures that the configuration remains stored on the broker and the device receives it upon connection. Below are the JSON messages for various configurations that correspond to the variables in the script.

Topic: acrios/<IMSI>/up/config

Messages are in JSON format and can contain any of the global parameters from the script. The device will apply changes after sending the beacon message. After the changes are successfully applied, the device will:

  1. Clear message from acrios/<IMSI>/up/config topic.
  2. Publish the changed parameters to the acrios/<IMSI>/config topic.

Overview​

  • The Topic is: acrios/<IMSI>/up/config (replace <IMSI> with the IMSI of the device – related to the SIM card a device is using).
  • The message must use a retain flag (retained = 1).
  • JSON must be valid and in format to be eligible for processing parse_json function. See below for the examples.
  • After sending the configuration message (with a retain flag), the device processes the message at the next connection and confirms its receipt by publishing to the topic acrios/<IMSI>/config, and removes the configuration message after its application.
info

Ensure that the JSON is in an appropriate format and uses a correct capitalization, e.g.: "startHour"

Example of JSON format:

{
       "mqtt_server": "broker.example.com",
       "mqtt_port": 1883
}

Individual JSON Configuration Examples​

  1. Setting MQTT Parameters
    {
        "mqtt_server": "broker.example.com",
        "mqtt_port": 1883,
        "mqtt_user": "newuser",
        "mqtt_password": "newpass",
        "mqtt_client_name": "acrcv-custom123",
        "mqtt_mode": "TCP",
        "mqtt_timeout": 30000
    }
  • Sets new MQTT broker, port, username, password, client name, connection mode, and timeout.
  • Send to: acrios/<IMSI>/up/config with retain flag.

M-Bus Configuration​

  1. Setup of M-Bus Addresses and Filters

    {
        "mbus_addresses": ["27:0502AABB01CC02EEFF01EE03EEFFEE", "6578953:0102AABB", "8:0"],
        "common_filters": ["0102AABB", "03020C7802046D0304937F"]
    }
    • Configures the list of M-Bus addresses (primary and secondary) and common VIF/DIF filters.
    • Address format <address>:<filter> or <address>:<filter index> from common_filters.

    MBus VIF/DIF Filter - Description

    Below is a table describing the structure of the MBus VIF/DIF filter based on the example 0502AABB01CC02EEFF01EE03EEFFEE.

    OrderValueDescription
    105Number of filters (in this case, 5 filters)
    202Length of the first filter (2 bytes)
    3AABBData of the first filter
    401Length of the second filter (1 byte)
    5CCData of the second filter
    602Length of the third filter (2 bytes)
    7EEFFData of the third filter
    801Length of the fourth filter (1 byte)
    9EEData of the fourth filter
    1003Length of the fifth filter (3 bytes)
    11EEFFEEData of the fifth filter

    Explanations:

    • Number of filters: The first byte (05) indicates the total number of filters in the sequence.
    • Filter length: Specifies the number of bytes that make up the following filter (e.g., 02 means the filter is 2 bytes).
    • Filter data: Hexadecimal value representing the filter itself (e.g., AABB, CC, etc.).

    Setup of M-Bus Addresses without Filters

    {
        "mbus_addresses": ["0", "65789532", "8"]
    }
    • Configures the list of M-Bus addresses (primary and secondary) without using VIF/DIF filtering.
    • Device address <primary address> or <secondary address>.
    • The script logic processes a number less than 255 as a primary address.

  2. Setup of Scheduled Data Collection

    {
        "workdayOnly": 1,
        "numberOfDays": 5,
        "startHour": 22,
        "randomizeSeconds": 3600
    }
    • Activates data collection only on workdays, sets 5 days from the end of the month, starts at 22:00, and includes a random delay of up to 1 hour.

  3. Setup of Beacon Interval and Watchdog

    {
        "beaconT": 96,
        "noComWdg": 2592000000
    }
    • Sets the beacon interval to 96 * 15 minutes (24 hours) and the no-communication watchdog to 30 days (in milliseconds).

  4. Complex Configuration (Combination of Multiple Parameters)

    {
        "mqtt_server": "myserver.net",
        "mqtt_port": 60883,
        "mqtt_mode": "TCP",
        "mbus_addresses": ["0:0", "22003287:0", "8:0"],
        "common_filters": ["03020C7802046D0304937F"],
        "startHour": 23,
        "randomizeSeconds": 7200,
        "beaconT": 48,
        "SCmV": 3150
    }
    • Combines MQTT settings (TCP connection), M-Bus addresses, scheduled data collection (23:00 with a 2-hour random delay), beacon interval (12 hours), and minimum voltage on the Super Capacitor (3150 mV).

How to Send a Retain Message​

Using an MQTT client (e.g., Mosquitto, MQTT Explorer), send a message to the topic acrios/<IMSI>/up/config with the retain flag. Example command for Mosquitto:

mosquitto_pub -h <mosquitto.org> -t "acrios/<IMSI>/up/config" -m '{"mqtt_server":"broker.example.com","mqtt_port":1883,"mqtt_user":"user","mqtt_password":"password"}' -r
  • -r: Activates the retain flag.
  • Replace <IMSI> with the actual IMSI of the device.
  • Replace <mosquitto.org> with the MQTT broker address.
  • Ensure the broker and credentials (mosquitto.org, user, password) are correctly replaced and correspond.

Verification of Receipt​

  • The device checks the validity of the JSON upon receiving the message and saves the configuration.
  • It sends a confirmation to the topic acrios/<IMSI>/config with the message content and clears the retain message.
  • Monitor this topic for confirmation.

Warning​

  • Ensure the JSON is correctly formatted, otherwise, the device will reject the configuration.
  • Retain messages remain on the broker until overwritten or cleared, ensuring the device receives the configuration upon connection.

Actions​

Topic: acrios/<IMSI>/up/action

Messages contain Lua script commands that the device will execute. The device executes the commands after sending a beacon message:

warning

If the message includes the command clearAction() at the end, the device will clear the message after execution. If the clearAction() command is not included, the device will execute the commands each time it sends a beacon message, effectively scheduling repeated commands.

Example:

Topic:

acrios/901405103467181/up/action

Message:

api.ledControl(1)
api.delayms(1000)
api.ledControl(0)
clearAction()

In this case, the device turns on the LED for 1 second and then turns it off. This is a one-time action due to clearAction().

For a complete list of actions, consult the Lua API section.

In case of any issues or questions, contact us at support@acrios.com.
Last updated on by KanOn
