ACR-EX Display Enabled Pulse to NB-IoT Converter - Integration Manual

Integration manual for the ACRIOS Systems display enabled pulse to NB-IoT converter ACR-EX-100NILCD-I1-C.

Unboxing of ACR-EX Display Enabled Pulse to NB-IoT Converter

Introduction

---

The following article contains all the major information about ACRIOS Systems ACR-EX Display Enabled Pulse to NB-IoT Converter. The first part covers the converter integration and the hardware used in the device. The second part explains the device management and uplink and downlink messages are also covered in detail.

Typical Use-Case

---

The integration of a pulse to NB-IoT converter offers a robust solution for efficiently monitoring and managing various types of utility meters, such as electric or gas meters. This technology enables real-time data collection and transmission, facilitating enhanced operational efficiency and informed decision-making.

Scenario:

Consider an electric utility company responsible for providing electricity to a large urban area. This utility company needs to monitor electricity usage across thousands of residential and commercial properties. Traditional methods of manual meter reading are time-consuming, prone to errors, and lack the capability for real-time monitoring. The challenge is to implement an efficient, reliable, and scalable system for automatic meter reading (AMR) and data transmission to the central management system.

Solution:

The pulse to NB-IoT converter provides a plug-and-play solution to address this challenge. By retrofitting existing meters with pulse output to the converter, the utility company can seamlessly integrate the meters into the NB-IoT network. This enables the utility company to monitor electricity consumption in real-time, generate accurate billing, and optimize energy distribution.

Benefits:

• Time and Cost Savings: The quick installation process eliminates extensive configuration and wiring efforts, reducing installation time and associated costs.
• Seamless Integration: The plug-and-play nature of the solution simplifies the integration of heat meters into the district heating network, minimizing disruption to the residents.
• Reliable Communication: The external antenna ensures reliable signal propagation, maintaining consistent communication even in complex urban environments.
• Real-time Insights: The solution provides real-time heat consumption data, enabling accurate billing and informed decision-making for energy optimization.
• Enhanced Data Accuracy: The conversion of pulse signals to digital data minimizes the risk of data discrepancies, leading to more accurate billing and usage analytics.
• Long Battery Life: The NB-IoT modules are designed for low power consumption, ensuring long battery life for the converters and reducing maintenance frequency.
• Secure Communication: NB-IoT offers robust security features to protect data integrity and prevent unauthorized access, ensuring secure communication between the meters and the central management system.

What Is a Pulse Output?

---

A pulse output signal is a common method used by various utility meters, such as electric, water, and gas meters, to indicate consumption levels.

This method works by assigning each pulse to a specific quantity of energy, water, or gas. For example, one pulse might represent 100 liters of water, 10 cubic meters of natural gas, or 1000 watts of electricity. Thus, for every 1000 watts that pass through your electric meter, one pulse is generated. The pulses are counted over time to calculate the total consumption.

Modern meters often use pulses at smaller measurement quantities to provide more detailed data. Pulse output meters are advantageous for interoperability, as they can be read by multiple vendors' systems, rather than being restricted to the meter's original vendor.

Pulse output is a reliable and efficient method for measuring and transmitting consumption data, playing a crucial role in modern utility management and automated meter reading systems.

Converter Integration

---

Functions

• Configurable modes: Signal Tester and Pulse Counter managed by UDP or LwM2M
• Configurable connection parameters
• Configurable sampling period intervals
• Automatic time synchronization on month change

Out of the Box Behaviors

By default, the converter is set to Pulse Counter mode.

State Diagram - Pulse Counter

This is a state diagram of the pulse counter mode.

The process could be simplified to the following steps:

1. The device starts after the restart or when it is plugged in.
2. The device checks, whether a SIM card is inserted.
3. The device checks, whether a network can be reached.
4. The device enters idle state, from which it attempts to send data either at certain intervals, or when manually triggered.

In Text Explanation

1. The device can be started either by:
   1. Plugging in the battery.
   2. Restarting the device by plugging the battery out, shorting it, and plugging in the battery.
      1. Either way, the device should display "STARTING" and the show the FW revision.
2. The device should now follow these steps:
   1. The device checks, if a valid SIM card is inserted:
      1. If there is no valid SIM card, or no SIM card, the display shows "NO SIM" - insert the valid SIM card and tap the magnet on the side.
   2. If the SIM card is valid, the device then attempts to connect to the network:
      1. If the device fails to connect, it shows "NO NET" - tap the magnet on the side after it has been resolved (either in configuration or by placing it to a place with a signal).
3. Once the device successfully connects, it should enter the idle mode.
   1. From there a scheduled reporting is executed.
   2. You can also read out the data with help of manual IEC head reading.
   3. Once the data is sent, the device returns to the idle mode:
      1. The display shows "SENDING".

Converter Readout (Payload)

The payload is a message sent from the device to the server or vice versa. There are two types of payloads: uplink and downlink.

The uplink payload is sent from the device to the server, and the downlink payload is sent from the server to the device. Uplink is used to send data from the device to the server, and downlink is used to send commands from the server to the device.

Uplink Command Bytes

Uplink Command Bytes List

Command Byte (HEX)	Description	LwM2M Resource
0xA5	Periodic report	165
0xA6	Periodic report with a Coulomb counter	166
0xA7	Periodic status report	167
0xAA	Read the archive	170
0xCC	Read the counter	204
0xDA	Read a device info	218
0xDD	Read a ratio	221
0xA0	Ping	160
0xEE	Signal tester	238
0xEF	Signal tester with a Coulomb counter	239
0xB0	Send a second of the day	176
0xB1	Send a second of the day - spread	177
0xB2	Read a display count time	178
0xB3	Read a display date time	179
0xB4	Read a maximum detector period	180
0xB5	Read a sampling period	181
0xB6	Read the config	182
0xB7	Read an APN	183
0xB8	Read an IP	184
0xB9	Read a port	185
0xBA	Read a PLMN ID	186
0xBB	Read an ID	187
0xBC	Read mode	188
0xBD	Read UNITSTR	189
0xBE	Read OBIS	190
0xBF	Clear the archive acknowledgment	191
0xE0	CRC16 failed	224
0xD0	Read a LWM2M endpoint	208
0xD1	Read a LWM2M server URL	209
0xD2	Read a LWM2M server port	210
0xD3	Read a LWM2M local port	211
0xD4	Read a LWM2M lifetime	212
0xD5	Read a LWM2M PSK ID	213
0xD6	Read a LWM2M PSK	214
0xC0	Read a battery capacity	192
0xC1	Read a history period length	193
0xC2	Read a signal tester period	194
0xC3	Read a signal tester mode	195
0xC4	Read a signal tester payload length	196
0xC5	Read a meter ID	197

Downlink Commands

Downlink Commands List

Command (ASCII)	Description
SET_SEND_DAY_SECOND	Set send day seconds
SET_SEND_DAY_SECOND_SPREAD	Set send day seconds - spread
SET_DISPLAY_COUNT_TIME	Set display count time
SET_DISPLAY_DATE_TIME	Set display date time
SET_MAXIMUM_DETECTOR_PERIOD	Set maximum detector period
SET_SAMPLING_PERIOD	Set sampling period
SET_COUNTER	Set counter
SET_RATIO	Set ratio
SET_NBIOT_PORT	Set NBIoT port
SET_NBIOT_IP	Set NBIoT IP
SET_NBIOT_APN	Set NBIoT APN
SET_NBIOT_PLMNID	Set NBIoT PLMN ID
SET_ID	Set ID
SET_MODE	Set mode
SET_UNITSTR	Set UNITSTR
SET_OBIS	Set OBIS
SET_BATTERY_CAPACITY	Set battery capacity
SET_HISTORY_PERIOD_LENGTH	Set history period length
SET_METER_ID	Set meter ID
SET_LWM2M_EP	Set LWM2M end point
SET_LWM2M_URL	Set LWM2M URL
SET_LWM2M_SERVER_PORT	Set LWM2M server port
SET_LWM2M_LOCAL_PORT	Set LWM2M local port
SET_LWM2M_LIFETIME	Set LWM2M lifetime
SET_LWM2M_PSK_ID	Set LWM2M PSK ID
SET_LWM2M_PSK	Set LWM2M PSK
SET_SIG_TESTER_PERIOD	Set signal tester period
SET_SIG_TESTER_MODE	Set signal tester mode
SET_CONFIG	Set config
GET_DEVICE_INFO	Get device info
GET_SEND_DAY_SECOND	Get send day seconds
GET_SEND_DAY_SECOND_SPREAD	Get send day seconds - spread
GET_DISPLAY_COUNT_TIME	Get display count time
GET_DISPLAY_DATE_TIME	Get display date time
GET_MAXIMUM_DETECTOR_PERIOD	Get maximum detector period
GET_SAMPLING_PERIOD	Get sampling period
GET_COUNTER	Get counter
GET_RATIO	Get ratio
GET_CONFIG	Get config
GET_NBIOT_PORT	Get NBIoT port
GET_NBIOT_IP	Get NBIoT IP
GET_NBIOT_APN	Get NBIoT APN
GET_NBIOT_PLMNID	Get NBIoT PLMN ID
GET_ID	Get ID
GET_MODE	Get mode
GET_UNITSTR	Get UNITSTR
GET_OBIS	Get OBIS
GET_BATTERY_CAPACITY	Get battery capacity
GET_HISTORY_PERIOD_LENGTH	Get history period length
GET_METER_ID	Get meter ID
GET_LWM2M_EP	Get LWM2M end point
GET_LWM2M_URL	Get LWM2M URL
GET_LWM2M_SERVER_PORT	Get LWM2M server port
GET_LWM2M_LOCAL_PORT	Get LWM2M local port
GET_LWM2M_LIFETIME	Get LWM2M lifetime
GET_LWM2M_PSK_ID	Get LWM2M PSK ID
GET_LWM2M_PSK	Get LWM2M PSK
GET_SIG_TESTER_PERIOD	Get signal tester period
GET_SIG_TESTER_MODE	Get signal tester mode
MESSAGE_CRC16	CRC error detection
READ_ARCHIVE	Read archive
CLEAR_ARCHIVE	Clear archive
RESET	Reset

Hardware Used

---

1. ACR-EX-100NILCD-I1-C - Display Enabled Pulse to NB-IoT Converter

The converter is designed to retrofit existing meters with pulse output to an NB-IoT communication. The converter is equipped with a pulse input, NB-IoT module, and a display for an easy on-site monitoring.

Hardware Limitations

---

• Battery life can last up to 15 years, but this may vary significantly due to external factors and natural degradation.
• Pulse input is equipped with a low-pass filter with a cut-off frequency of 7234 Hz.

ACR-EX input schematic

Application Limitations

---

• FW low-pass filter with a cut-off frequency of 50 Hz.
• FW NB-IoT module sent size limitation of 512 bytes.

This means messages larger than 512 B are truncated, with only the initial portion sent, leading to data loss for the remaining content.

Device Management

---

IoT device management refers to the process of monitoring, configuring, updating, and maintaining IoT devices throughout their lifecycle. It involves various tasks and functionalities aimed at ensuring the reliable and efficient operation of IoT devices deployed in networks. Our device can be managed with the following standards/protocols:

1. IEC
2. UDP
3. LwM2M

IEC Device Management

---

IEC 62056-21, formerly known as IEC 1107, is an international standard that specifies the DLMS/COSEM protocol, which stands for Device Language Message Specification (DLMS) and Companion Specification for Energy Metering (COSEM). This protocol is widely used for communication between utilities and various types of energy meters, facilitating efficient data exchange for meter reading, billing, and monitoring purposes. It defines the structure and format of messages exchanged between energy meters and data collection systems, ensuring interoperability and compatibility across different vendors and devices.

Our device is equipped with an optical port compliant with the IEC 62056-21 standard, enabling effortless communication and compatibility.

Optical Probe

An optical probe, often referred to as an optical port or optical head, is a device used for communication with energy meters that support the DLMS/COSEM protocol according to the IEC 62056-21 standard. It typically consists of an optical sensor and associated circuitry housed in a compact unit.

The optical probe is connected to a computer or data collection device via a serial or USB interface. It emits pulses of light that are received by the optical port on the energy meter. These pulses encode data such as meter readings, parameters, or commands and that allows bidirectional communication between the meter and an external device.

ORNO OR WE 518 optical probe

We also offer ORNO optical probes for the management of our devices (datasheet: EN).

If you wish to order the probes from ACRIOS, use the order code of: Opticka_hlavice_USB-E379

info

Communication starts at 300 Bd and after sign-on, our device switches to 9600 Bd.

Operation

The device uses C protocol mode and fifth baud speed.

info

The C protocol mode ensures bidirectional data exchange with baud rate switching and allows data retrieval, programming with increased security, and modes defined by the manufacturer.

The following procedure happens when the device is being used:

1. PC sends a request for a transfer of ACR-EX‘s address.
2. ACR-EX sends a response with its address. (Sign On)
3. PC sends a command for a mode and a baud speed.
   1. Read mode: ACR-EX sends a response containing the archive data.
   2. Programming mode: ACR-EX sends a response with an operand for the security algorithm.
      1. PC sends a password (IMEI).
      2. ACR-EX sends an acknowledgment.
      3. Communication between the devices ends with the Sign Off command. (Timeout)

Read Mode

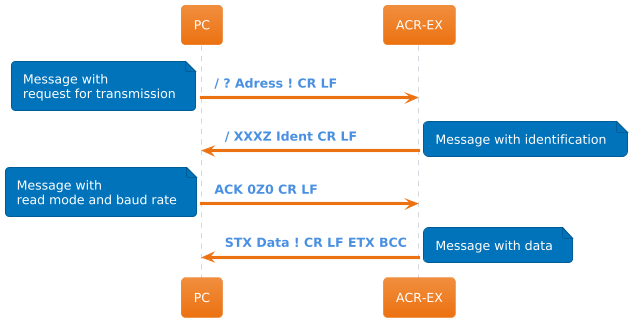

Read mode communication diagram

Programming Mode

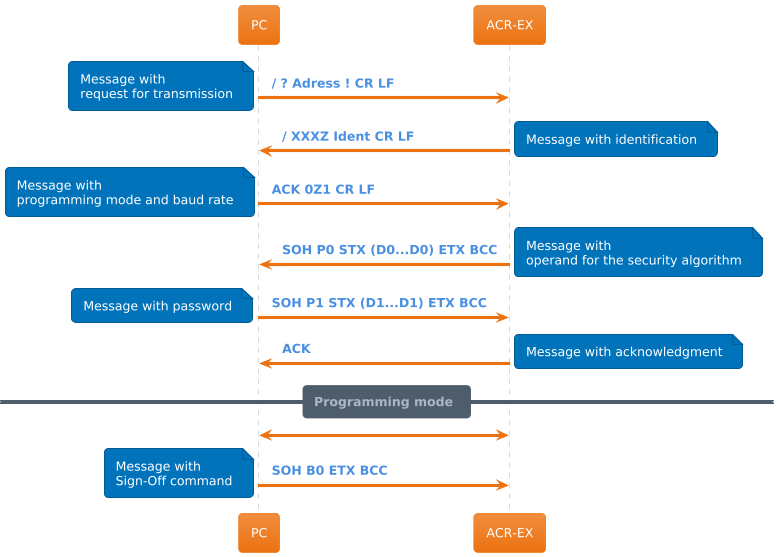

Programming mode communication diagram

Registers

The device utilizes a range of registers for its IEC interface, facilitating crucial operations and configurations. These registers encompass a diverse set of functionalities, such as:

• Network settings
• Data transmission intervals
• Signal testing parameters
• And others

Register Name	Address	Length	Operations	Range/Format	Data Type	Default Value
IEC_REG_COUNTER	0	4	R/W	0 - 4294967295	Integer	0 [count]
IEC_REG_IP	4	64	R/W	IPv4	String
IEC_REG_PORT	68	4	R/W	0 - 65535	Integer	4242
IEC_REG_APN	72	64	R/W	1 - 63 chars	String	auto
IEC_REG_PLMNID	136	4	R/W	0 / 00000 - 99999	Integer	0
IEC_REG_ID	140	64	R/W	1 - 63 chars	String	Device IMEI
IEC_REG_RATIO	204	4	R/W	Ratios	Integer	1:1
IEC_REG_SIGNAL_TESTER	208	4	R/W	0 - 2	Integer	0 (Pulse counter UDP)
IEC_REG_UNIT	212	16	R/W	1 - 15 chars	String	*m3
IEC_REG_OBIS_CODE	228	16	R/W	nn.nn.nn	String	3.0.0
IEC_REG_SEND_DAY_SEC	244	4	R/W	0 - 86399	Integer	21600
IEC_REG_SEND_DAY_SEC_SPREAD	248	4	R/W	0 - 86399	Integer	0
IEC_REG_SAMPLING_PERIOD	252	4	R/W	300 - 86399	Integer	3600
IEC_REG_DISPLAY_COUNT_TIME	256	4	R/W	3 - 600	Integer	20
IEC_REG_DISPLAY_DATE_TIME	260	4	R/W	6 - 600	Integer	4
IEC_REG_MAXIMUM_DETECTOR_PERIOD	264	4	R/W	60 - 86399	Integer	300
IEC_REG_LWM2M_SERVER_URL	268	64	R/W	URL/IP	String
IEC_REG_LWM2M_SERVER_PORT	332	4	R/W	0 - 65535	Integer	5683
IEC_REG_LWM2M_LOCAL_PORT	336	4	R/W	0 - 65535	Integer	56833
IEC_REG_LWM2M_EP	340	64	R/W	1 - 63 chars	String	acrex
IEC_REG_LWM2M_LIFETIME	404	4	R/W	86399 - 2678369	Integer	30
IEC_REG_DEVICE_INFO	408	128	R		String	Depends on FW and HW
IEC_REG_LWM2M_PSKID	536	64	R/W		String
IEC_REG_LWM2M_PSK	600	64	R/W		String
IEC_REG_SIG_TESTER_PERIOD	664	4	R/W		Integer
IEC_REG_SIG_TESTER_MODE	668	4	R/W		Integer
IEC_REG_SIG_TESTER_PAYLOAD_LEN	672	4	R/W		Integer
IEC_REG_BATTERY_CAPACITY	676	4	R/W	100 - 20000	Integer	8500 [mAh]
IEC_REG_HISTORY_PERIOD_LEN	680	4	R/W	0 - 3	Integer	3 (4 days)
IEC_REG_METERID	684	16	R/W	1 - 15 chars	String
IEC_REG_EXIT	65530	None	W	None	None	None

info

n - number from 0 to 9

Different color coding represents different categories: Common registers, common Counter registers for UDP and LwM2M modes, LwM2M mode registers and Signal Tester mode registers.

Ratios

Ratio	Integer
1000000:1	1000000
100000:1	100000
10000:1	10000
1000:1	1000
100:1	100
10:1	10
1:1	1
1:10	-10
1:100	-100
1:1000	-1000
1:10000	-10000
1:100000	-100000
1:1000000	-1000000

Converter Modes

• 0: Pulse counter UDP
• 1: Signal Tester
• 2: Pulse counter LwM2M

Managing Devices

To manage the device you need a Chromium-based browser (Google Chrome is recommended) and an optical probe.

Connecting to the GUI and configuring the device

1. Connect the optical probe to the computer via USB port.
2. Open the browser and navigate to ACR-EX GUI.
3. Click on the Connect button.
4. The optical head should be detected (make sure the driver was installed), select it and click on the Connect.
5. If you connected successfully, you should see the following screen.
6. Put the device in the IEC mode and connect the probe to the device:

warning

IEC mode has timeout of 30 seconds. If the device doesn't receive any commands in that time, it will switch back to the previous mode. This timeout is reset with every command received.

7. You can either Load Config From Device or Show Default Values (of configuration).
8. Configure the device config according to your needs.
9. Press Save Config To Device.

Reading the archive

1. After connecting to the device, click on the Read Archive button.
2. Click on the Read Archive button.

Setting the counter

1. After connecting to the device, click on the Set Counter button.
2. You can either Load Counter or Set Counter.
3. Set the counter value and click on the Set Counter button.

UDP Device Management

---

UDP is a lightweight and fast communication protocol designed for time-sensitive transmissions such as real-time communication or IoT sensor networks. It provides a connectionless method for sending and receiving data packets over IP networks, ensuring minimal delay and low latency.

UDP is a part of the Internet Protocol suite, working alongside other protocols like TCP to facilitate data exchange over networks.

UDP, unlike TCP, does not establish connections before transmitting data. This means that UDP operates in a connectionless manner, where each UDP packet is sent independently without prior setup or acknowledgment from the receiver.

danger

UDP is not a secure protocol! Unlike TCP, UDP does not provide built-in security features such as encryption, authentication, or integrity checks.

Securing UDP

Using a Private APN can significantly enhance the security of your UDP communications, especially in cellular networks. A Private APN provides a dedicated and isolated network path, which helps to secure data transmission between the devices and the server. Here are the key benefits and steps to secure UDP with a Private APN:

• Isolated network: Private APNs create a separate network environment for your devices, ensuring that data traffic is not shared with other users or devices.
• Enhanced security: With a Private APN, your data is transmitted through a secure tunnel, which prevents unauthorized access and reduces the risk of attacks such as sniffing and spoofing.
• Improved reliability: By using a dedicated network, you can achieve more consistent performance and lower latency compared to public networks.
• Cost saving: Private APNs can help reduce data costs by optimizing data usage and minimizing unnecessary traffic.

Managing Devices

Managing our device using UDP protocol consists of sending downlink commands to the device. The device will respond with an uplink payload containing the requested data or acknowledgment.

LwM2M Device Management

---

LwM2M is a lightweight and efficient device management protocol designed for IoT devices. It provides a standardized way to manage and monitor IoT devices remotely, enabling a secure and reliable communication between devices and servers. LwM2M is based on the CoAP (Constrained Application Protocol) and uses the OMA (Open Mobile Alliance) LwM2M object model to define the structure and attributes of IoT devices.

Our device uses SIMCOM SIM7022 module for communication which supports the LwM2M protocol.

Data

In LwM2M protocol, objects and resources are fundamental concepts that represent the structure and attributes of IoT devices and their capabilities.

Objects

Objects represent logical groupings of related resources that define the functionality or capabilities of IoT devices. Each object is identified by a unique Object ID, which is a numerical value assigned to it within the LwM2M specification. Objects encapsulate properties, behaviors, and metadata associated with a particular aspect of a device functionality, such as:

• Device information
• Connectivity
• Sensors
• Actuators
• Firmware management
• And others

Resources

Resources are individual data elements or attributes within an object that represent specific properties, states, or capabilities of an IoT device. Each resource is identified by a unique Resource ID within its parent object and is accessed using a combination of an Object ID and a Resource ID.

Resources can be of different types, such as integer, float, string, boolean, opaque, etc., depending on the type of data they represent. Resources may have associated operations or functionalities, such as read, write, execute, or observe, which define how they can be accessed, modified, or monitored.

Data Operations

LwM2M protocol facilitates various data operations for managing and interacting with IoT devices. These operations include read, write, execute, and observe, which allow clients and servers to access, modify, execute, and monitor the data and resources of IoT devices remotely.

Read

Reading data from resources on IoT devices allows retrieving information such as sensor readings, device status, or configuration parameters. Clients can send read requests for specific resources using LwM2M protocols, and devices respond with the requested data.

Write

Writing data to resources enables configuring device settings, updating parameters, or sending commands to IoT devices. Clients can send write requests to modify resource values, and devices acknowledge the changes accordingly.

Execute

Executing commands or actions on IoT devices triggers specific behaviors or operations. Clients can invoke execute requests on executable resources, prompting devices to perform tasks such as resetting, rebooting, or initiating actions based on the request.

Observe

Observing resources enables continuous monitoring of data changes or events on IoT devices. Clients can establish observation relationships with specific resources, and devices notify clients about updates or modifications to the observed data in real-time.

Server

To use LwM2M, you need to set up the server and connect it to the device. The server is responsible for managing device registrations, data communication, firmware updates, and device monitoring. The server can be a cloud-based platform, an on-premises server, or a dedicated LwM2M server. You could use an open-source LwM2M server such as Leshan or a commercial LwM2M platform such as Coiote.

Adding a New Device to the Server

To add a new device to the LwM2M server, you need to register the device with the server by providing the necessary device information, such as the endpoint name and security credentials.

Leshan

info

For comprehensive setup instructions, refer to the official documentation: Getting Started with Leshan

Leshan supports the following security modes:

1. PSK (Pre-shared key)
2. RPK (Raw public-key)
3. X.509 (Certificate)
4. NoSec (No security)

To add a device to a Leshan server, you'll need to configure its endpoint and security mode. If you opt for modes other than "NoSec", identity and key parameters are required for authentication. This ensures a secure and seamless integration of devices into the Leshan ecosystem.

Coiote

info

Setting up Coiote is straightforward and user-friendly. It's basically signing up for an account and choosing the desired pricing plan.

Coiote supports the following security modes:

1. PSK (Pre-shared key)
2. NoSec (No security)

To add a device to a Coiote server, you'll need to configure its endpoint and security mode. If you opt for PSK, you'll need to provide a key identity and a key for authentication. The key format can be HEX or plain text. Coiote has a custom name option for better identification.

Client

We use our own C-based LwM2M client for streamlined performance and customized functionality. This tailored solution ensures efficient management of IoT devices to meet our specific needs.

First Time Client Setup

To use LwM2M, you need to set up the device and connect it to the server. The initial setting of the device can be done manually using an optical probe or by us during the production if you provided us with the parameters.

Necessary parameters:

• Server address (URL/IP)
  • Bootstrap server
• Server port (5683/5684 - secure)
  • Security mode (PSK)
  • Pre-shared key
• Connection type (IPV4/IPV6)
• Local port
• Endpoint name
• Binding mode
• Lifetime

caution

In the absence of a security mode and pre-shared key settings, the device will default to a non-secure mode.

ACR-EX Custom LwM2M Objects and Resources

Our device uses custom LwM2M objects and resources to represent its functionality and capabilities. Custom objects and resources in LwM2M offer the flexibility to tailor the device management to specific use cases and requirements.

These objects and resources are defined according to the OMA LwM2M object model and provide a structured representation of the device's properties, states, and behaviors.

By defining custom objects and resources, developers can extend the standard functionality of LwM2M to accommodate unique device features and data points.

Such customization empowers users to efficiently manage diverse IoT devices and extract meaningful insights from their data, enhancing overall system performance and functionality.

info

Our resource IDs are generated by adding the decimal representation of a hexadecimal command byte to the offset of 27000. For example, the resource ID for the command byte 0xA5 is 27000 + 165 = 27165. You can find the calculated command byte values in the LwM2M resource column of the Uplink command bytes table.

ACR-EX Connection Configuration (Object ID 32769)

Resource ID	Name	Type	Unit	Operations
27183	APN	String	-	R/W
27184	IP	String	-	R/W
27185	Port	String	-	R/W
27186	PLMNID	String	-	R/W
27187	ID	String	-	R/W
27213	LWM2MPSKID	String	-	R/W
27214	LWM2MPSK	String	-	R/W
27208	LWM2MEndpoint	String	-	R/W
27209	LWM2MServerURL	String	-	R/W
27210	LWM2MServerPort	String	-	R/W
27211	LWM2MLocalPort	String	-	R/W
27212	LWM2MLifetime	String	-	R/W

ACR-EX Device Configuration (Object ID 32770)

Resource ID	Name	Type	Unit	Operations
27000	DeviceReset	String	-	E
27189	UnitStr	String	-	R/W
27190	ObisCode	String	-	R/W
27221	Ratio	String	-	R/W
27188	Mode	String	-	R/W
27178	DisplayCountTime	String	-	R/W
27179	DisplayDateTime	String	-	R/W
27180	MaximumDetectorPeriod	String	-	R/W
27181	SamplingPeriod	String	-	R/W
27176	SendSecondOfDay	String	-	R/W
27177	SendSecondOfDaySpread	String	-	R/W

ACR-EX Gas Meter (ID 3277X)

Resource ID	Name	Type	Unit	Operations

Note that this feature is currently under development.

Uplink - Payloads Sent by the Converter

---

Every payload starts with a custom ID and consists of command bytes and data. The command byte is a hexadecimal value that represents the command to be executed. The data is a sequence of bytes that represent the parameters of the command.

Custom ID

Custom ID is a unique identifier for the device. It is represented by a sequence of bytes. The length of a custom ID is up to 64 bytes.

Example	Description	Value
0x38 0x30 0x30 0x30 0x30 0x32	Custom ID	80002

info

By default, the custom ID is the device's IMEI.

danger

If you are not using Miotiq (IoT connectivity provider), custom ID is prepended by IMSI (15 bytes)!

Periodic Report (0xA5)

info

This uplink payload is deprecated. Periodic Status Report (0xA7) is currently in use.

Payload Description

Example	Description	Size	Byte Number	Value
0xA5	Command byte	[1B]	1	NONE
0x4F 0x00 0x00 0x00	Message sequence number	[4B] (little endian)	2 - 5	79 [number]
0x01 0x00 0x00 0x00	Ratio	[4B] (little endian)	6 - 9	1 [-]
0x4C 0x0E	Battery voltage (CPU)	[2B] (little endian)	10 - 11	3660 [mV]
0x12	Signal	[1B]	12	18 [CSQ units]
0x0C	Temperature (CPU)	[1B]	13	12 [°C]
0x47 0x20 0xA6 0x66	Minimum flow rate timestamp	[4B] (little endian)	14 - 17	1722163271 [s]
0x40 0x42 0x0F 0x00 0x00 0x00 0x00 0x00	Minimum flow rate	[8B] (little endian)	18 - 25	1000000 [-]
0xD6 0xF2 0xAA 0x66	Maximum flow rate timestamp	[4B] (little endian)	26 - 29	1722479318 [s]
0x40 0x93 0x34 0x02 0x00 0x00 0x00 0x00	Maximum flow rate	[8B] (little endian)	30 - 37	37000000 [-]
0xD9 0x99 0xA5 0x66	1st report timestamp	[4B] (little endian)	38 - 41	1722128857 [s]
0x00 0x00 0x00 0x00	1st report value	[4B] (little endian)	42 - 45	0 [count]
...	...	...	...	...
0x12 0xBF 0xB2 0x66	Nth report timestamp	[4B] (little endian)		1722990354 [s]
0x05 0x0A 0x00 0x00	Nth report value	[4B] (little endian)		2565 [count]

Periodic Report Byte Stream Payload Example:

38 30 30 30 30 32 A5 4F 00 00 00 01 00 00 00 4C 0E 12 0C 47 20 A6 66 40 42 0F 00 00 00 00 00 D6 F2 AA 66 40 93 34 02 00 00 00 00 D9 99 A5 66 00 00 00 00 ... 12 BF B2 66 05 0A 00 00

This is a periodic report sent by the converter to the server.

Periodic Report with a Coulomb Counter (0xA6)

info

This uplink payload is deprecated. Periodic Status Report (0xA7) is currently in use.

Payload Description

Example	Description	Size	Byte Number	Value
0xA6	Command byte	[1B]	1	NONE
0x05 0x00 0x00 0x00	Message sequence number	[4B] (little endian)	2 - 5	5 [number]
0x01 0x00 0x00 0x00	Ratio	[4B] (little endian)	6 - 9	1 [-]
0x12 0x0E	Battery voltage (CPU)	[2B] (little endian)	10 - 11	3602 [mV]
0x12	Signal	[1B]	12	18 [CSQ units]
0x12	Temperature (CPU)	[1B]	13	18 [°C]
0x06 0x00	Total consumed energy	[2B] (little endian)	14 - 15	6 [mAh]
0x2B 0x00	Equivalent Series Battery Resistance Estimate	[2B] (little endian)	16 - 17	43 [mOhm]
0xD6 0x0D	Input voltage load	[2B] (little endian)	18 - 19	3542 [mV]
0x2B	Degree Celsius (CC)	[1B]	20	43 [°C]
0x47 0x20 0xA6 0x66	Minimum flow rate timestamp	[4B] (little endian)	21 - 24	1722163271 [s]
0x40 0x42 0x0F 0x00 0x00 0x00 0x00 0x00	Minimum flow rate	[8B] (little endian)	25 - 32	1000000 [-]
0xD6 0xF2 0xAA 0x66	Maximum flow rate timestamp	[4B] (little endian)	33 - 36	1722479318 [s]
0x40 0x93 0x34 0x02 0x00 0x00 0x00 0x00	Maximum flow rate	[8B] (little endian)	37 - 44	37000000 [-]
0xD9 0x99 0xA5 0x66	1st report timestamp	[4B] (little endian)	45 - 48	1722128857 [s]
0x00 0x00 0x00 0x00	1st report value	[4B] (little endian)	49 - 52	0 [count]
...	...	...	...	...
0x12 0xBF 0xB2 0x66	Nth report timestamp	[4B] (little endian)		1722990354 [s]
0x05 0x0A 0x00 0x00	Nth report value	[4B] (little endian)		2565 [count]

Periodic Report with a Coulomb Counter Byte Stream Payload Example:

38 30 30 30 30 32 A6 05 00 00 00 01 00 00 00 12 0E 12 12 06 00 2B 00 D6 0D 2B 47 20 A6 66 40 42 0F 00 00 00 00 00 D6 F2 AA 66 40 93 34 02 00 00 00 00 D9 99 A5 66 00 00 00 00 ... 12 BF B2 66 05 0A 00 00

This is a periodic report with a Coulomb counter sent by the converter to the server.

Periodic Status Report (0xA7)

Payload Description

Example	Description	Size	Byte Number	Value
0xA7	Command byte	[1B]	1	NONE
0x05 0x00 0x00 0x00	Message sequence number	[4B] (little endian)	2 - 5	5 [number]
0x01 0x00 0x00 0x00	Ratio	[4B] (little endian)	6 - 9	1 [-]
0x12 0x0E	Battery voltage (CPU)	[2B] (little endian)	10 - 11	3602 [mV]
0x12	Signal	[1B]	12	18 [CSQ units]
0x12	Temperature (CPU)	[1B]	13	18 [°C]
0x34 0x21	Battery capacity	[2B] (little endian)	14 - 15	8500 [mAh]
0x06 0x00	Total consumed energy	[2B] (little endian)		6 [mAh]
0x2B 0x00	Equivalent Series Battery Resistance Estimate	[2B] (little endian)		43 [mOhm]
0xD6 0x0D	Input voltage load	[2B] (little endian)		3542 [mV]
0x2B	Degree Celsius (CC)	[1B]		43 [°C]
0x41 0x43 0x52 0x49 0x4F 0x53 0x00	Meter ID	[xB]		ACRIOS
0x02	History period length	[1B]		3 [days]
0x60 0x23 0x5D 0x1F	Send timestamp	[4B] (little endian)		526197600 [s]
0x0C 0xD3 0x5B 0x1F	Minimum flow rate timestamp	[4B] (little endian)		526111500 [s]
0x00 0x00 0x00 0x00 0x00 0x00 0x00 0x00	Minimum flow rate	[8B] (little endian)		0 [-]
0xF4 0x9E 0x5C 0x1F	Maximum flow rate timestamp	[4B] (little endian)		526163700 [s]
0x1A 0x41 0x00 0x00 0x00 0x00 0x00 0x00	Maximum flow rate	[8B] (little endian)		16666 [-]
0x10 0x0E 0x00 0x00	Sampling period	[4B] (little endian)		3600 [s]
0x00 0x6A 0x58 0x1F	1st report timestamp	[4B] (little endian)		525888000 [s]
0x08 0x00 0x00 0x00	1st report value	[4B] (little endian)		8 [count]
...	...	...	...	...
0x92 0x05 0x00 0x00	Nth report value	[4B] (little endian)		1426 [count]

info

History period length:

• 0: Only transmits newly collected samples from the past 24 hours.

• 1, 2, 3: Transmits samples from the last day along with an additional history of 1, 2, or 3 preceding days, respectively.

  warning

  The number of samples transmitted is determined by the sampling rate. The internal buffer capacity is limited to 128 samples. If the number of accumulated samples exceeds this limit, the oldest samples will be overwritten by newer ones, resulting in data loss.

Periodic Status Report Byte Stream Payload Example:

38 30 30 30 30 32 A7 05 00 00 00 01 00 00 00 12 0E 12 12 34 21 06 00 2B 00 D6 0D 2B 41 43 52 49 4F 53 00 03 60 23 5D 1F 0C D3 5B 1F 00 00 00 00 00 00 00 00 F4 9E 5C 1F 1A 41 00 00 00 00 00 00 10 0E 00 00 00 6A 58 1F 08 00 00 00 ... 92 05 00 00

This is a periodic status report sent by the converter to the server.

Read the Archive (0xAA)

Payload Description

Example	Description	Size	Byte Number	Value
0xAA	Command byte	[1B]	1	NONE
0x05 0x00 0x00 0x00	Message sequence number	[4B] (little endian)	2 - 5	5
0x01 0x00 0x00 0x00	Ratio	[4B] (little endian)	6 - 9	1
0xFC 0x9F 0x8F 0x1F	Archive start	[4B]	10 - 13	529506300 [s]
0x2C 0x01 0x00 0x00	Sampling period	[4B]	14 - 17	300 [s]
0xC6 0x00 0x00 0x00	1st archive value	[4B]	18 - ^	198 [count]
...	...	...	...	...
0xAE 0x04 0x00 0x00	Nth archive value	[4B]		1198 [count]
0xFF 0xFF 0xFF 0xFE	New timestamp break	[4B]		NONE

note

Note that 0xFF 0xFF 0xFF 0xFE serves as a break in case the device stops reporting in scheduled intervals - e.g. in case the battery runs out.

It is followed by timestamp [4B] and the value related to said timestamp [4B] - The format of reports in the archive then follows the usual format. 0xAA is backwards compatible as long as 0xFF 0xFF 0xFF 0xFE does not occur.

Read the Counter (0xCC)

Payload Description

Example	Description	Size	Byte Number	Value
0xCC	Command byte	[1B]	1	NONE
0x72 0x1E 0xA2 0xAB	Message sequence number	[4B] (little endian)	2 - 5
0x01 0x00 0x00 0x00	Count	[4B] (little endian)	6 - 9

Read a Device Info (0xDA)

Payload Description

Example	Description	Size	Byte Number	Value
0xDA	Command byte	[1B]	1	NONE
0x71 0x1E 0x6B 0x8F	Message sequence number	[4B] (little endian)	2 - 5
0xXX ...	Device info	[xB]	6 - ^

Read a Ratio (0xDD)

Payload Description

Example	Description	Size	Byte Number	Value
0xDD	Command byte	[1B]	1	NONE
0x71 0x1E 0x6B 0x8F	Message sequence number	[4B] (little endian)	2 - 5
0x18 0x00 0xC0 0xEB	Ratio	[4B] (little endian)	6 - 9

Ping (0xA0)

Payload Description

Example	Description	Size	Byte Number
0xA0	Command byte	[1B]	1

Signal Tester (0xEE)

Payload Description

Example	Description	Size	Byte Number	Value
0xEE	Command byte	[1B]	1	NONE
0x00 0x01 0x00 0x00	Message sequence number	[4B] (little endian)	2 - 5	256 [number]
0xE8 0x03 0x00 0x00	Ratio	[4B] (little endian)	6 - 9	1000 [-]
0xE8 0x0D	Battery voltage (CPU)	[2B] (little endian)	10 - 11	3560 [mV]
0x12	Signal	[1B]	12	18 [CSQ units]
0x30	Temperature (CPU)	[1B]	13	48 [°C]
0xAF 0x25 0x00 0x00	Pulses	[4B] (little endian)	21 - 24	9647 [count]

Signal Tester with a Coulomb Counter (0xEF)

Payload Description

Example	Description	Size	Byte Number	Value
0xEF	Command byte	[1B]	1	NONE
0x00 0x01 0x00 0x00	Message sequence number	[4B] (little endian)	2 - 5	256 [number]
0xE8 0x03 0x00 0x00	Ratio	[4B] (little endian)	6 - 9	1000 [-]
0xE8 0x0D	Battery voltage (CPU)	[2B] (little endian)	10 - 11	3560 [mV]
0x12	Signal	[1B]	12	18 [CSQ units]
0x30	Temperature (CPU)	[1B]	13	48 [°C]
0x25 0x00	Total consumed energy	[2B] (little endian)	14 - 15	37 [mAh]
0x60 0x01	Equivalent Series Battery Resistance Estimate	[2B] (little endian)	16 - 17	352 [mOhm]
0xD7 0x0D	Input voltage under load	[2B] (little endian)	18 - 19	3543 [mV]
0x1A	Degree Celsius	[1B]	20	26 [°C]
0xAF 0x25 0x00 0x00	Pulses	[4B] (little endian)	21 - 24	9647 [count]

The Table of Signal Values

Value	RSSI dBm	Condition
30	-53	Excellent
29	-55	Excellent
28	-57	Excellent
27	-59	Excellent
26	-61	Excellent
25	-63	Excellent
24	-65	Excellent
23	-67	Excellent
22	-69	Excellent
21	-71	Excellent
20	-73	Excellent
19	-75	Good
18	-77	Good
17	-79	Good
16	-81	Good
15	-83	Good
14	-85	OK
13	-87	OK
12	-89	OK
11	-91	OK
10	-93	OK
9	-95	Marginal
8	-97	Marginal
7	-99	Marginal
6	-101	Marginal
5	-103	Marginal
4	-105	Marginal
3	-107	Marginal
2	-109	Marginal
99	-	Unknown or Undetectable

Send a Second of the Day (0xB0)

Payload Description

Example	Description	Size	Byte Number	Value
0xB0	Command byte	[1B]	1	NONE
0x26 0xED 0x1D 0x39	Message sequence number	[4B] (little endian)	2 - 5
0x30 0x00 0x00 0xC0	Second of day	[4B]	6 - 9

Send a Second of the Day - Spread (0xB1)

Payload Description

Example	Description	Size	Byte Number	Value
0xB1	Command byte	[1B]	1	NONE
0x01 0x00 0x00 0x00	Message sequence number	[4B] (little endian)	2 - 5
0xXX 0xXX 0xXX 0xXX	Second of day - spread	[4B] (little endian)	6 - 9

Read a Display Count Time (0xB2)

Payload Description

Example	Description	Size	Byte Number	Value
0xB2	Command byte	[1B]	1	NONE
0x1F 0x00 0x30 0x10	Message sequence number	[4B] (little endian)	2 - 5
0x74 0x1E 0xD7 0xE0	Display count time	[4B] (little endian)	6 - 9

Read a Display Date Time (0xB3)

Payload Description

Example	Description	Size	Byte Number	Value
0xB3	Command byte	[1B]	1	NONE
0x71 0x1E 0xEA 0x02	Message sequence number	[4B] (little endian)	2 - 5
0x18 0x00 0x90 0xC1	Display date time	[4B] (little endian)	6 - 9

Read a Maximum Detector Period (0xB4)

Payload Description

Example	Description	Size	Byte Number	Value
0xB4	Command byte	[1B]	1	NONE
0xXX 0xXX 0xXX 0xXX	Message sequence number	[4B] (little endian)	2 - 5
0xXX 0xXX 0xXX 0xXX	Maximum detector period time	[4B] (little endian)	6 - 9

Read a Sampling Period (0xB5)

Payload Description

Example	Description	Size	Byte Number	Value
0xB5	Command byte	[1B]	1	NONE
0x01 0x00 0x00 0x00	Message sequence number	[4B] (little endian)	2 - 5
0xXX 0xXX 0xXX 0xXX	Sampling period	[4B] (little endian)	6 - 9

Read the Config (0xB6)

Payload Description

Example	Description	Size	Byte Number	Value
0xB6	Command byte	[1B]	1	NONE
0xEC 0x1D 0x39 0x30	Message sequence number	[4B] (little endian)	2 - 5
0x00 0x00 0x00 0x00	Config payload length	[4B] (little endian)	6 - 9
0xXX ...	Custom APN	[xB]	10 - ^
0xXX ...	Custom IP	[xB]
0xXX 0xXX 0xXX 0xXX	Custom port	[4B]
0xXX 0xXX 0xXX 0xXX	Custom PLMNID	[4B]
0xXX ...	Custom ID	[xB]
0xXX 0xXX 0xXX 0xXX	Ratio	[4B] (little endian)
0xXX 0xXX 0xXX 0xXX	Mode	[4B]
0xXX ...	UNITSTR	[xB]
0xXX ...	OBISCode	[xB]
0x00 ...	Meter ID	[XB]
0xXX 0xXX 0xXX 0xXX	Second of day	[4B]
0xXX 0xXX 0xXX 0xXX	Second of day - spread	[4B]
0xXX 0xXX 0xXX 0xXX	Display count time	[4B]
0xXX 0xXX 0xXX 0xXX	Display date time	[4B]
0xXX 0xXX 0xXX 0xXX	Maximum detector period	[4B]
0xXX 0xXX 0xXX 0xXX	Sampling period	[4B]
0x00 0x00	Battery capacity	[2B] (little endian)
0x00	History period length	[1B]
0xXX ...	LWM2M end point	[xB]
0xXX ...	LWM2M server URL	[xB]
0xXX 0xXX 0xXX 0xXX	LWM2M server port	[4B]
0xXX 0xXX 0xXX 0xXX	LWM2M local port	[4B]
0xXX 0xXX 0xXX 0xXX	LWM2M lifetime	[4B]
0xXX ...	LWM2M PSK ID	[xB]
0xXX ...	LWM2M PSK	[xB]
0xXX 0xXX 0xXX 0xXX	Signal tester period	[4B]
0xXX 0xXX 0xXX 0xXX	Signal tester mode	[4B]
0x00 0x00 0x00 0x00	Signal tester payload length	[4B] (little endian)

xB = Variable size

Read an APN (0xB7)

Payload Description

Example	Description	Size	Byte Number	Value
0xB7	Command byte	[1B]	1	NONE
0x01 0x00 0x00 0x00	Message sequence number	[4B] (little endian)	2 - 5
0xXX ...	Custom APN	[xB]	6 - ^

xB = Variable size

Read an IP (0xB8)

Payload Description

Example	Description	Size	Byte Number	Value
0xB8	Command byte	[1B]	1	NONE
0x01 0x00 0x00 0x00	Message sequence number	[4B] (little endian)	2 - 5
0xXX ...	Custom IP	[xB]	6 - ^

xB = Variable size

Read a Port (0xB9)

Payload Description

Example	Description	Size	Byte Number	Value
0xB9	Command byte	[1B]	1	NONE
0x01 0x00 0x00 0x00	Message sequence number	[4B] (little endian)	2 - 5
0xXX 0xXX 0xXX 0xXX	Custom port	[4B] (little endian)	6 - 9

Read a PLMN ID (0xBA)

Payload Description

Example	Description	Size	Byte Number	Value
0xBA	Command byte	[1B]	1	NONE
0x01 0x00 0x00 0x00	Message sequence number	[4B] (little endian)	2 - 5
0xXX 0xXX 0xXX 0xXX	Custom PLMNID	[4B] (little endian)	6 - 9

Read an ID (0xBB)

Payload Description

Example	Description	Size	Byte Number	Value
0xBB	Command byte	[1B]	1	NONE
0x01 0x00 0x00 0x00	Message sequence number	[4B] (little endian)	2 - 5
0xXX ...	Custom ID	[xB]	6 - ^

xB = Variable size

Read Mode (0xBC)

Payload Description

Example	Description	Size	Byte Number	Value
0xBC	Command byte	[1B]	1	NONE
0x01 0x00 0x00 0x00	Message sequence number	[4B] (little endian)	2 - 5
0xXX 0xXX 0xXX 0xXX	Mode	[4B] (little endian)	6 - 9

Read UNITSTR (0xBD)

Payload Description

Example	Description	Size	Byte Number	Value
0xBD	Command byte	[1B]	1	NONE
0x01 0x00 0x00 0x00	Message sequence number	[4B] (little endian)	2 - 5
0xXX ...	UNITSTR	[xB]	6 - ^

xB = Variable size

Read OBIS (0xBE)

Payload Description

Example	Description	Size	Byte Number	Value
0xBE	Command byte	[1B]	1	NONE
0x01 0x00 0x00 0x00	Message sequence number	[4B] (little endian)	2 - 5
0xXX ...	OBIS	[xB]	6 - ^

xB = Variable size

Clear the Archive Acknowledgment (0xBF)

Payload Description

Example	Description	Size	Byte Number	Value
0xBF	Command byte	[1B]	1	NONE
0x01 0x00 0x00 0x00	Message sequence number	[4B] (little endian)	2 - 5

Read a Battery Capacity (0xC0)

Payload Description

Example	Description	Size	Byte Number	Value
0xC0	Command byte	[1B]	1	NONE
0x01 0x00 0x00 0x00	Message sequence number	[4B] (little endian)	2 - 5
0x00 0x00	Battery capacity	[2B] (little endian)	6 - 7

Read a History Period Length (0xC1)

Payload Description

Example	Description	Size	Byte Number	Value
0xC1	Command byte	[1B]	1	NONE
0x01 0x00 0x00 0x00	Message sequence number	[4B] (little endian)	2 - 5
0x03	History period length	[1B]	6	4 [days]

info

History period length is indexed from 0 to 3, where 0 represents 1 day, 1 represents 2 days, etc.

Read a Meter ID (0xC5)

Payload Description

Example	Description	Size	Byte Number	Value
0xC5	Command byte	[1B]	1	NONE
0x01 0x00 0x00 0x00	Message sequence number	[4B] (little endian)	2 - 5
0xXX 0xXX 0xXX 0xXX 0xXX 0xXX 0xXX 0xXX 0xXX 0xXX 0xXX 0xXX 0xXX 0xXX 0xXX 0x00	Meter ID	[16B]	6 - 21

info

Meter ID is a string with up to 15 characters and null terminator.

CRC16 Failed (0xE0)

Payload Description

Example	Description	Size	Byte Number	Value
0xE0	Command byte	[1B]	1	NONE
0x01 0x00 0x00 0x00	Message sequence number	[4B] (little endian)	2 - 5

Read a LWM2M Endpoint (0xD0)

Payload Description

Example	Description	Size	Byte Number	Value
0xD0	Command byte	[1B]	1	NONE
0x01 0x00 0x00 0x00	Message sequence number	[4B] (little endian)	2 - 5
0xXX ...	LWM2M EP	[xB]	6 - ^

xB = Variable size

Read a LWM2M Server URL (0xD1)

Payload Description

Example	Description	Size	Byte Number	Value
0xD1	Command byte	[1B]	1	NONE
0x01 0x00 0x00 0x00	Message sequence number	[4B] (little endian)	2 - 5
0xXX ...	LWM2M server URL	[xB]	6 - ^

xB = Variable size

Read a LWM2M Server Port (0xD2)

Payload Description

Example	Description	Size	Byte Number	Value
0xD2	Command byte	[1B]	1	NONE
0x01 0x00 0x00 0x00	Message sequence number	[4B] (little endian)	2 - 5
0xXX 0xXX 0xXX 0xXX	LWM2M server port	[4B] (little endian)	6 - 9

Read a LWM2M Local Port (0xD3)

Payload Description

Example	Description	Size	Byte Number	Value
0xD3	Command byte	[1B]	1	NONE
0x01 0x00 0x00 0x00	Message sequence number	[4B] (little endian)	2 - 5
0xXX 0xXX 0xXX 0xXX	LWM2M local port	[4B] (little endian)	6 - 9

Read a LWM2M Lifetime (0xD4)

Payload Description

Example	Description	Size	Byte Number	Value
0xD4	Command byte	[1B]	1	NONE
0x01 0x00 0x00 0x00	Message sequence number	[4B] (little endian)	2 - 5
0xXX 0xXX 0xXX 0xXX	LWM2M lifetime	[4B] (little endian)	6 - 9

Read a LWM2M PSK ID (0xD5)

Payload Description

Example	Description	Size	Byte Number	Value
0xD5	Command byte	[1B]	1	NONE
0x01 0x00 0x00 0x00	Message sequence number	[4B] (little endian)	2 - 5
0xXX ...	LWM2M PSK ID	[xB]	6 - ^

XB = Variable size

Read a LWM2M PSK (0xD6)

Payload Description

Example	Description	Size	Byte Number	Value
0xD6	Command byte	[1B]	1	NONE
0x01 0x00 0x00 0x00	Message sequence number	[4B] (little endian)	2 - 5
0xXX ...	LWM2M PSK	[XB]	6 - ^

XB = Variable size

Read a Signal Tester Period (0xC2)

Payload Description

Example	Description	Size	Byte Number	Value
0xC2	Command byte	[1B]	1	NONE
0x01 0x00 0x00 0x00	Message sequence number	[4B] (little endian)	2 - 5
0xXX 0xXX 0xXX 0xXX	Signal tester period	[4B] (little endian)	6 - 9

Read a Signal Tester Mode (0xC3)

Payload Description

Example	Description	Size	Byte Number	Value
0xC3	Command byte	[1B]	1	NONE
0x01 0x00 0x00 0x00	Message sequence number	[4B] (little endian)	2 - 5
0xXX 0xXX 0xXX 0xXX	Signal tester mode	[4B] (little endian)	6 - 9

Read a Signal Tester Payload Length (0xC4)

Payload Description

Example	Description	Size	Byte Number	Value
0xC4	Command byte	[1B]	1	NONE
0x01 0x00 0x00 0x00	Message sequence number	[4B] (little endian)	2 - 5
0xXX 0xXX 0xXX 0xXX	Signal tester payload length	[4B] (little endian)	6 - 9

Downlink - Payloads Sent by the Server

warning

The device responds to commands only when they are sent as a reply to a report message. It will not react to commands sent as standalone messages.

---

Downlink Setters

Command (ASCII)	Description
SET_SEND_DAY_SECOND	Set send day seconds
SET_SEND_DAY_SECOND_SPREAD	Set send day seconds - spread
SET_DISPLAY_COUNT_TIME	Set display count time
SET_DISPLAY_DATE_TIME	Set display date time
SET_MAXIMUM_DETECTOR_PERIOD	Set maximum detector period
SET_SAMPLING_PERIOD	Set sampling period
SET_COUNTER	Set counter
SET_RATIO	Set ratio
SET_NBIOT_PORT	Set NBIoT port
SET_NBIOT_IP	Set NBIoT IP
SET_NBIOT_APN	Set NBIoT APN
SET_NBIOT_PLMNID	Set NBIoT PLMNID
SET_ID	Set ID
SET_MODE	Set mode
SET_UNITSTR	Set UNITSTR
SET_OBIS	Set OBIS
SET_BATTERY_CAPACITY	Set battery capacity
SET_HISTORY_PERIOD_LEN	Set history period length
SET_METER_ID	Set meter ID
SET_LWM2M_EP	Set LWM2M EP
SET_LWM2M_URL	Set LWM2M URL
SET_LWM2M_SERVER_PORT	Set LWM2M server port
SET_LWM2M_LOCAL_PORT	Set LWM2M local port
SET_LWM2M_LIFETIME	Set LWM2M lifetime
SET_LWM2M_PSK_ID	Set LWM2M PSK ID
SET_LWM2M_PSK	Set LWM2M PSK
SET_SIGNAL_TESTER_PERIOD	Set signal tester period
SET_SIGNAL_TESTER_MODE	Set signal tester mode
SET_CONFIG	Set config

Downlink Setting Parameter(s)

Parameters are set by sending a payload to the device. The payload consists of a command and a value. The command is an ASCII string that represents the parameter to be set. Command and value are separated by an equal sign [=].

tip

Parameters can be set individually or multiple parameters can be set at once. To set all parameters at once, use the SET_CONFIG command.

caution

Setting parameters related to NB-IoT functionalities will cause the NB-IoT modem to undergo reinitialization in order to apply the new settings.

Example	Description
SET_SEND_DAY_SECOND=24	Set Send day seconds parameter value to 24

note

GET_SEND_DAY_SECOND command from the example can be replaced by any command from the Downlink Setters list except GET_CONFIG.

ASCII stream payload example:

SET_SEND_DAY_SECOND=24

Multiple setter commands can be combined in one payload. Each command is separated by a blank space ( ).

Example	Description
SET_SEND_DAY_SECOND=24 SET_DISPLAY_COUNT_TIME=10	Set Send day seconds to 24 and Display count time to 10

ASCII stream payload example:

SET_SEND_DAY_SECOND=24 SET_DISPLAY_COUNT_TIME=10

CRC Error Detection

A payload can be secured by CRC. To enable CRC, add the MESSAGE_CRC16 command at the end of the payload.

If the payload secured by CRC fails the check, the device discards the payload and informs the server to process a new command or interrupt the processing.

Example	Description
SET_SEND_DAY_SECOND=24 SET_DISPLAY_COUNT_TIME=10 MESSAGE_CRC16=D6FF	Set two parameters and secure payload with CRC check

ASCII stream payload example:

SET_SEND_DAY_SECOND=24 SET_DISPLAY_COUNT_TIME=10 MESSAGE_CRC16=D6FF

To use CRC, the CRC check value must be calculated and added to the payload. The CRC check value is a 16-bit integer that represents the CRC of the payload.

Payload to be secured by CRC:

SET_CONFIG=auto,192.168.0.20,4242,0,901288002328121,-1000,0,*m3,3.0.0,14400,300,10,6,60,1800 CLEAR_ARCHIVE RESET

caution

At the end of the payload has to be a blank space!

The CRC check value can be calculated using the following online tool: CRC calc (CRC-16/AUG-CCITT).

Calculated CRC check value:

7AE6

To secure the payload with CRC, add MESSAGE_CRC16=CHECK_VALUE at the end of the payload.

Secured payload with CRC:

SET_CONFIG=auto,192.168.0.20,4242,0,901288002328121,-1000,0,*m3,3.0.0,14400,300,10,6,60,1800 CLEAR_ARCHIVE RESET MESSAGE_CRC16=7AE6

Set Config (SET_CONFIG)

SET_CONFIG command is used to set multiple parameters at once.

Parameter Number	Parameter	Data type
1	Custom APN	String
2	Custom IP	String
3	Custom port	Integer
4	Custom PLMNID	Integer
5	Custom ID	String
6	Ratio	Integer
7	Mode	Integer
8	UNITSTR	String
9	OBIS	String
10	Second of day	Integer
11	Second of day - spread	Integer
12	Display count time	Integer
13	Display date time	Integer
14	Maximum detector period	Integer
15	Sampling period	Integer
16	LWM2M Endpoint	String
17	LWM2M Server URL	String
18	LWM2M Server Port	Integer
19	LWM2M Local Port	Integer
20	LWM2M Lifetime	Integer

note

Parameters are separated by a comma [,].

Example	Description
SET_CONFIG=auto,192.168.0.20,4242,0,901288002328121,-100,0,*m3,3.0.0,14400,300,10,6,60,1800	Set config parameters

SET_CONFIG=auto,192.168.0.20,4242,0,901288002328121,-100,0,*m3,3.0.0,14400,300,10,6,60,1800

Downlink Getters

Command (ASCII)	Description	Answer
GET_DEVICE_INFO	Get device info	0xDA
GET_SEND_DAY_SECOND	Get send day seconds	0xB0
GET_SEND_DAY_SECOND_SPREAD	Get send day seconds - spread	0xB1
GET_DISPLAY_COUNT_TIME	Get display count time	0xB2
GET_DISPLAY_DATE_TIME	Get display date time	0xB3
GET_MAXIMUM_DETECTOR_PERIOD	Get maximum detector period	0xB4
GET_SAMPLING_PERIOD	Get sampling period	0xB5
GET_COUNTER	Get counter	0xCC
GET_RATIO	Get ratio	0xDD
GET_CONFIG	Get config	0xB6
GET_NBIOT_PORT	Get NBIoT port	0xB9
GET_NBIOT_IP	Get NBIoT IP	0xB8
GET_NBIOT_APN	Get NBIoT APN	0xB7
GET_NBIOT_PLMNID	Get NBIoT PLMNID	0xBA
GET_ID	Get ID	0xBB
GET_MODE	Get mode	0xBC
GET_UNITSTR	Get UNITSTR	0xBD
GET_OBIS	Get OBIS	0xBE
GET_BATTERY_CAPACITY	Get battery capacity	0xC0
GET_HISTORY_PERIOD_LEN	Get history period length	0xC1
GET_METER_ID	Get meter ID	0xC5
GET_LWM2M_EP	Get LWM2M EP	0xD0
GET_LWM2M_URL	Get LWM2M URL	0xD1
GET_LWM2M_SERVER_PORT	Get LWM2M server port	0xD2
GET_LWM2M_LOCAL_PORT	Get LWM2M local port	0xD3
GET_LWM2M_LIFETIME	Get LWM2M lifetime	0xD4
GET_LWM2M_PSK_ID	Get LWM2M PSK ID	0xD5
GET_LWM2M_PSK	Get LWM2M PSK	0xD6
GET_SIGNAL_TESTER_PERIOD	Get signal tester period	0xC2
GET_SIGNAL_TESTER_MODE	Get signal tester mode	0xC3

Downlink Getting Parameter(s)

Parameters are retrieved by sending a payload to the device. The payload consists of a command(s). The command is an ASCII string that represents the parameter to be retrieved.

tip

Parameters can be retrieved individually or multiple parameters can be retrieved at once. To retrieve all parameters at once, use the GET_CONFIG command.

Example	Description	Answer
GET_SEND_DAY_SECOND	Get Send day seconds parameter value	0xB0

note

GET_SEND_DAY_SECOND command from the example can be replaced by any command from Downlink Getters list except GET_CONFIG.

Multiple getter commands can be combined in one payload. Each command is separated by a blank space [ ].

Example	Description
GET_SEND_DAY_SECOND GET_DISPLAY_COUNT_TIME	Get Send day seconds and Display count time

Get Config (GET_CONFIG)

GET_CONFIG command is used to retrieve all the parameters at once.

Read Archive (READ_ARCHIVE)

Read archive command is used to retrieve the archive data from the device within a specified time frame.

Parameter Number	Parameter	Data type
1	Start timestamp	Integer
2	End timestamp	Integer

note

Timestamps are in seconds since January 1, 2008, UTC.

Example	Description	Answer
READ_ARCHIVE=500000000,600000000	Read archive	0xAA

READ_ARCHIVE=500000000,600000000

Downlink Extra Actions

Command (ASCII)	Description	Answer
MESSAGE_CRC16	CRC check	0xE0
CLEAR_ARCHIVE	Clear archive	0xBF
RESET	Reset	NONE

Calculations

Timestamp

uint32_t getTimeStampNow(uint8_t* buffer)
{
    extern volatile uint32_t year;
    extern volatile uint32_t month;
    extern volatile uint32_t day;
    extern volatile uint32_t hour;
    extern volatile uint32_t minute;
    extern volatile uint32_t second;

    time_t timestamp;
    struct tm currTime;

    currTime.tm_year = year - 1900;
    currTime.tm_mday = day;
    currTime.tm_mon  = month - 1;

    currTime.tm_hour = hour;
    currTime.tm_min  = minute;
    currTime.tm_sec  = second;

    timestamp = mktime(&currTime);
    timestamp -= 1199145600; // Subtract 1.1.2008 epoch offset

    if(buffer)
    {
        memcpy(buffer, &timestamp, 4);
    }
    return (uint32_t) timestamp;
}

info

The getTimeStampNow function calculates the timestamp based on the current date and time, measuring time from January 1, 2008, in UTC.

The year, month, day, hour, minute, and second variables are updated by the device's NB-IoT module. The getTimeStampNow function calculates the timestamp based on the current date and time.

Min/Max flow rate

Min flow rate is initialized to the maximum possible value of 64 byte integer, and max flow rate is initialized to the zero.

$$Flow\ rate = \frac{ (Flow\ point_2 - Flow\ point_1) \cdot 1000000 }{ Time\ stamp_2 - Time\ stamp_1 }$$

If calculated flow rate is less than the min flow rate, the min flow rate is updated with the calculated flow rate. If calculated flow rate is greater than the max flow rate, the max flow rate is updated with the calculated flow rate.

• Multiplication by 1,000,000: This scaling factor ensures that the flow rate calculation results in whole numbers rather than fractions.
• Timestamp Difference: The difference between the two timestamps represents the interval between pulse count checks. This interval is crucial for calculating the rate of change accurately.
• Pulse-to-Unit Ratio: The pulse-to-unit ratio is used to convert the pulse count to the desired unit of measurement. This ratio is set by user and is used by backend parser to convert the flow rate to the appropriate unit.

Example calculation of flow rate

$$Flow\ point_1 = 503\ pulses$$ $$Time\ stamp_1 = 34020\ s$$ $$Flow\ point_2 = 518\ pulses$$ $$Time\ stamp_2 = 34320\ s$$ $$Interval\ between\ checks = 300\ s\ (5\ m)$$ $$Flow\ rate = \frac{ (532621 - 533121) \cdot 1000000 }{ 34320 - 34020 } = 1666667$$

This number is send to backend and parsed with the ratio to get the flow rate in the desired unit. If the ratio is 1000:1, the flow rate is calculated as follows:

$$Real\ flow\ rate = \frac{1666667}{1000000} \cdot 0.001 = 0.00167\ m^3s^{-1}$$ $$= 0.0167 \cdot 3600 = 6\ m^3h^{-1}$$

Troubleshooting & FAQ

---

The device is not connecting to the GUI

• Please, make sure to use a Chromium based browser, we strongly recommend to use Google Chrome (other Chromium based browsers still may cause unexpected issues). Make also sure that the serial line is not opened on any other serial line monitor.

Was anything unclear, missing or hard to understand? Please, contact us at support@acrios.com.

Further information can be found on wiki.acrios.com.
